ESD7561N2T5G

ESD7561N2T5G

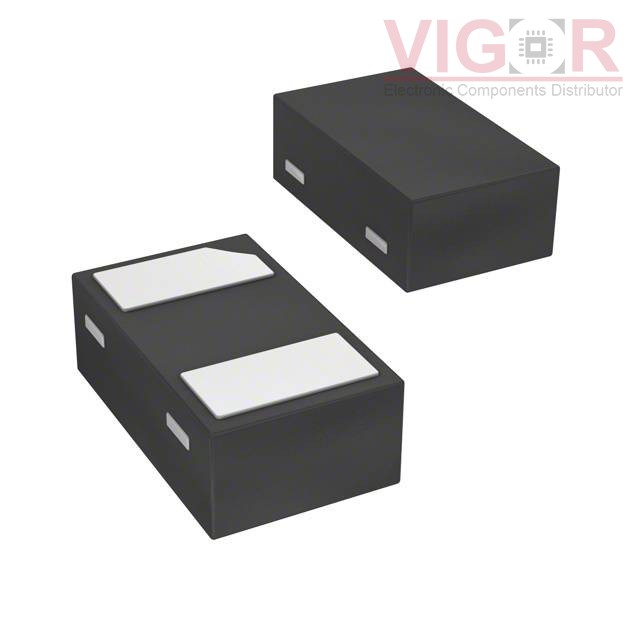

Image is for reference,
please contact us to get the real picture

Part No :

ESD7561N2T5G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
TVS DIODE 16V 39V 2X2DFN
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
ESD7561N2T5G PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ESD7561N2T5G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESD7561N2T5G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):16V (Max)
Voltage - Breakdown (Min):16.5V
Voltage - Clamping (Max) @ Ipp:39V (Typ)
Current - Peak Pulse (10/1000µs):16A (100ns)
Power - Peak Pulse:-
Power Line Protection:No
Applications:RF Antenna
Capacitance @ Frequency:0.3pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:2-XDFN
Supplier Device Package:2-X2DFN (1x0.6)
