MXP5KE22AE3

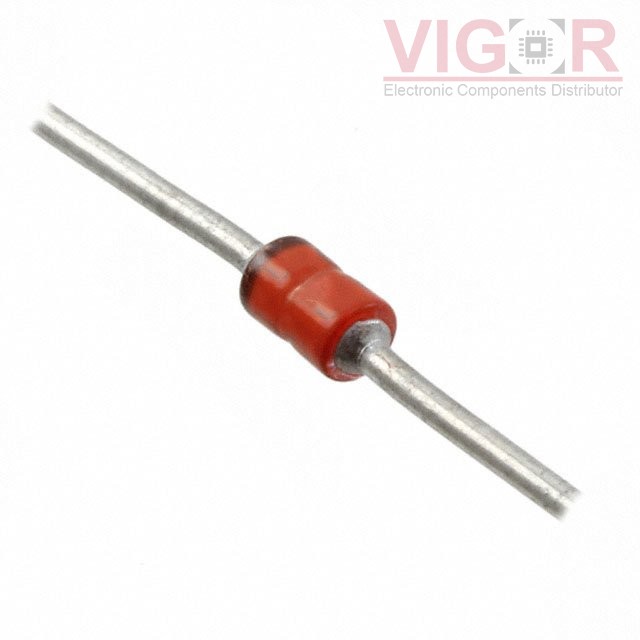

Image is for reference,
please contact us to get the real picture

Part No :: MXP5KE22AE3

Manufacturer: Microsemi

Description: TVS DIODE 22V 35.5V DO204AL

Catalog: TVS - Diodes

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: MXP5KE22AE3 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of MXP5KE22AE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MXP5KE22AE3 Specifications

Type	Description
Series:	Military, MIL-PRF-19500
Package:	Bulk
Part Status:	Obsolete
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	22V
Voltage - Breakdown (Min):	24.4V
Voltage - Clamping (Max) @ Ipp:	35.5V
Current - Peak Pulse (10/1000µs):	14.1A
Power - Peak Pulse:	500W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	DO-204AL, DO-41, Axial
Supplier Device Package:	DO-204AL (DO-41)

Please confirm the specifications of the products when ordering.
