SM8S22AHE3/2D

SM8S22AHE3/2D

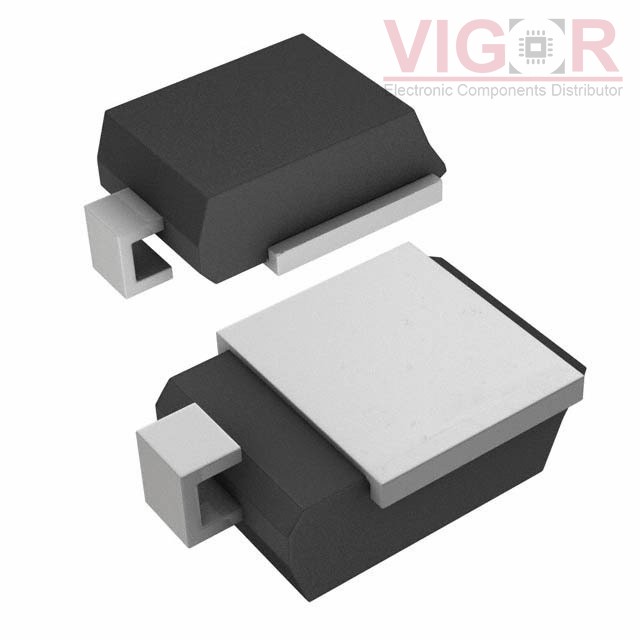

Image is for reference,
please contact us to get the real picture

Part No :

SM8S22AHE3/2D

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
TVS DIODE 22V 35.5V DO218AB
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 14 - Aug 18 2025
DataSheet
SM8S22AHE3/2D PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SM8S22AHE3/2D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SM8S22AHE3/2D Specifications
Type Description
Series:Automotive, AEC-Q101, PAR®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):22V
Voltage - Breakdown (Min):24.4V
Voltage - Clamping (Max) @ Ipp:35.5V
Current - Peak Pulse (10/1000µs):186A
Power - Peak Pulse:6600W (6.6kW)
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-218AB
Supplier Device Package:DO-218AB
