P6SMB56AT3

P6SMB56AT3

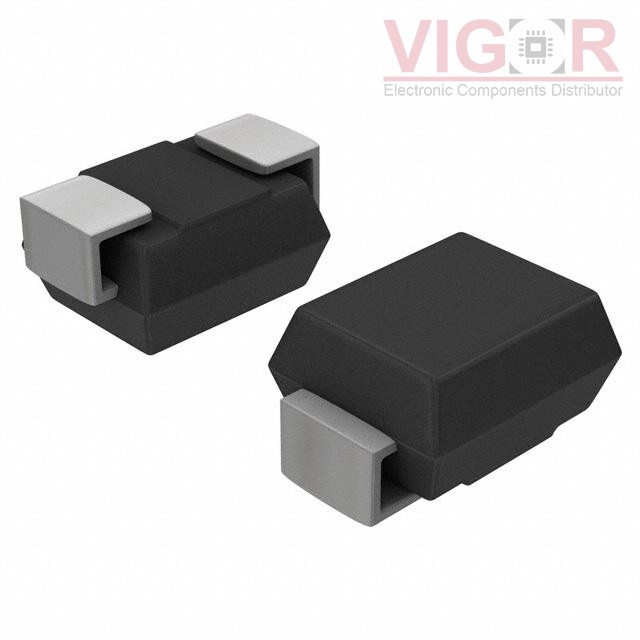

Image is for reference,
please contact us to get the real picture

Part No :

P6SMB56AT3

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
TVS DIODE 47.8V 77V SMB
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
P6SMB56AT3 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of P6SMB56AT3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

P6SMB56AT3 Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):47.8V
Voltage - Breakdown (Min):53.2V
Voltage - Clamping (Max) @ Ipp:77V
Current - Peak Pulse (10/1000µs):7.8A
Power - Peak Pulse:600W
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:365pF @ 1MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AA, SMB
Supplier Device Package:SMB
