PCN10-20P-2.54DSA(72)

PCN10-20P-2.54DSA(72)

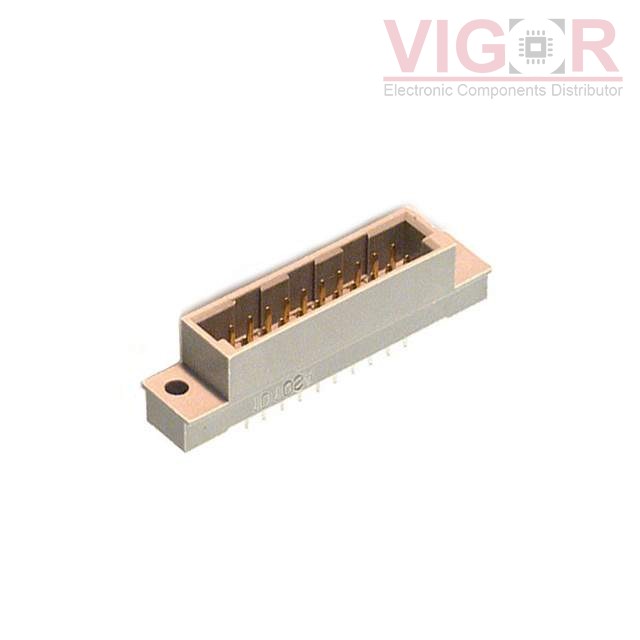

Image is for reference,
please contact us to get the real picture

Part No :

PCN10-20P-2.54DSA(72)

Manufacturer
Hirose
Description
CONN DIN HDR 20POS PCB GOLD
Catalog
Backplane Connectors - DIN 41612
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
PCN10-20P-2.54DSA(72) PDF
Availability
700 pieces
Unit Price
$3.76000

Current price of PCN10-20P-2.54DSA(72) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PCN10-20P-2.54DSA(72) Specifications
Type Description
Series:PCN10
Package:Tray
Part Status:Active
Connector Type:Header, Male Pins
Number of Positions:20
Number of Positions Loaded:All
Pitch:0.100" (2.54mm)
Number of Rows:2
Style:B
Level, Class:-
Mounting Type:Through Hole
Termination:Solder
Features:-
Contact Finish:Gold
Contact Finish Thickness:8.00µin (0.203µm)
