5646533-1

5646533-1

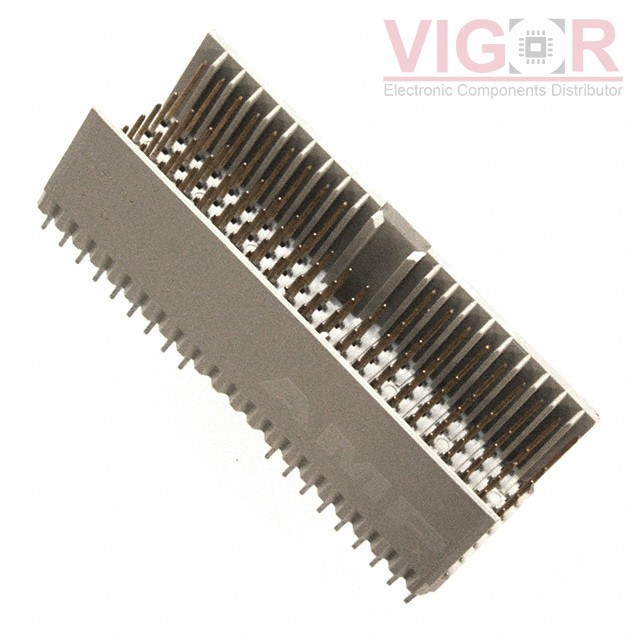

Image is for reference,
please contact us to get the real picture

Part No :

5646533-1

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER 146POS 2MM PRESS-FIT
Catalog
Backplane Connectors - Hard Metric, Standard
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
5646533-1 PDF
Availability
370 pieces
Unit Price
$10.97000

Current price of 5646533-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5646533-1 Specifications
Type Description
Series:Z-PACK
Package:Tube
Part Status:Active
Connector Type:Header, Male Pins
Connector Style:AB 22
Number of Positions:146 (110 + 36 Ground)
Number of Positions Loaded:All
Pitch:0.079" (2.00mm)
Number of Rows:5 + 2
Mounting Type:Through Hole
Termination:Press-Fit
Connector Usage:-
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
