0764951127

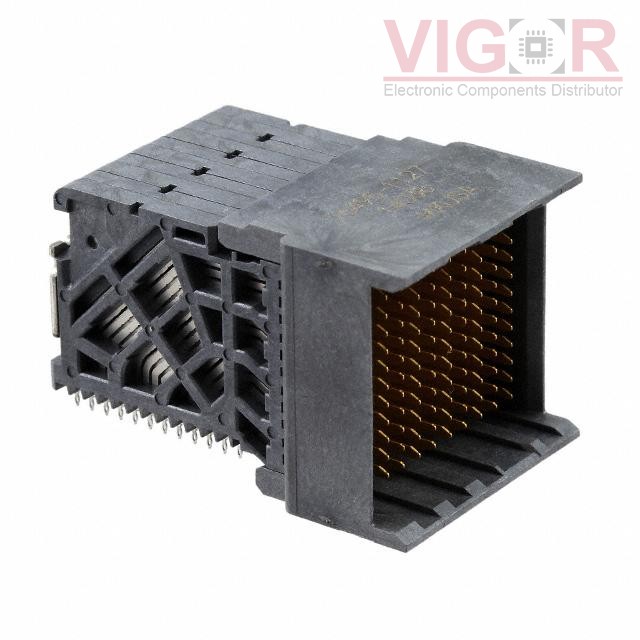

Image is for reference,
please contact us to get the real picture

Part No :: 0764951127

Manufacturer: Woodhead - Molex

Description: CONN HDR IMPACT 120POS EDGE MNT

Catalog: Backplane Connectors - Specialized

Shipped from: HK warehouse

Expected Shipping Date: Jul 13 - Jul 17 2025

DataSheet: 0764951127 PDF

Availability: 0 pieces

Unit Price: ~~$16.97606~~

Current price of 0764951127 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0764951127 Specifications

Type	Description
Series:	Impact 76495
Package:	Tray
Part Status:	Active
Connector Usage:	-
Connector Type:	Header, Male Pins
Connector Style:	Impact
Number of Positions:	120
Number of Positions Loaded:	All
Pitch:	0.053" (1.35mm)
Number of Rows:	12
Number of Columns:	10
Mounting Type:	Board Edge, Through Hole, Right Angle
Termination:	Press-Fit
Contact Layout, Typical:	40 Differential Pairs
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Color:	Black

Please confirm the specifications of the products when ordering.
