DL1-156RW-6B

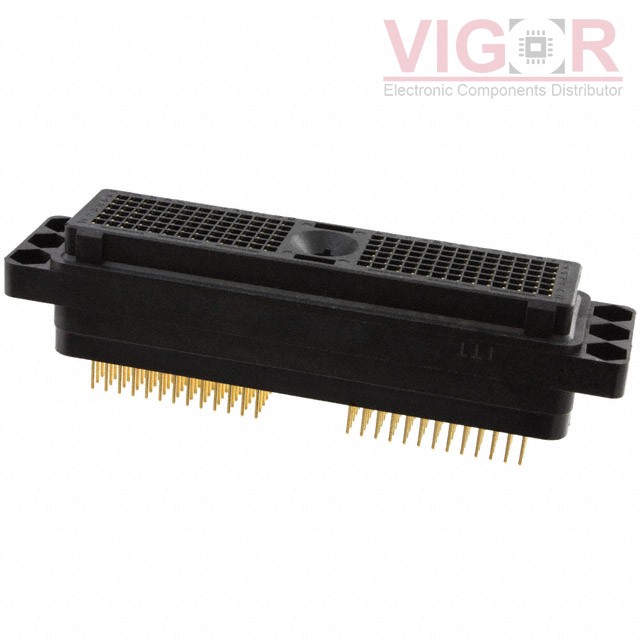

Image is for reference,
please contact us to get the real picture

Part No :: DL1-156RW-6B

Manufacturer: VEAM

Description: CONN RCPT 156POS PNL MNT

Catalog: Backplane Connectors - Specialized

Shipped from: HK warehouse

Expected Shipping Date: Jul 18 - Jul 22 2025

DataSheet: DL1-156RW-6B PDF

Availability: 178 pieces

Unit Price: ~~$265.62000~~

Current price of DL1-156RW-6B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DL1-156RW-6B Specifications

Type	Description
Series:	DL
Package:	-
Part Status:	Active
Connector Usage:	-
Connector Type:	Receptacle, Hermaphroditic Contacts
Connector Style:	-
Number of Positions:	156
Number of Positions Loaded:	All
Pitch:	0.100" (2.54mm)
Number of Rows:	6
Number of Columns:	-
Mounting Type:	Panel Mount
Termination:	Solder
Contact Layout, Typical:	-
Features:	Actuating Camshaft Socket, Zero Insertion Force (ZIF)
Contact Finish:	Gold
Contact Finish Thickness:	50.0µin (1.27µm)
Color:	Black

Please confirm the specifications of the products when ordering.
