16041705104000

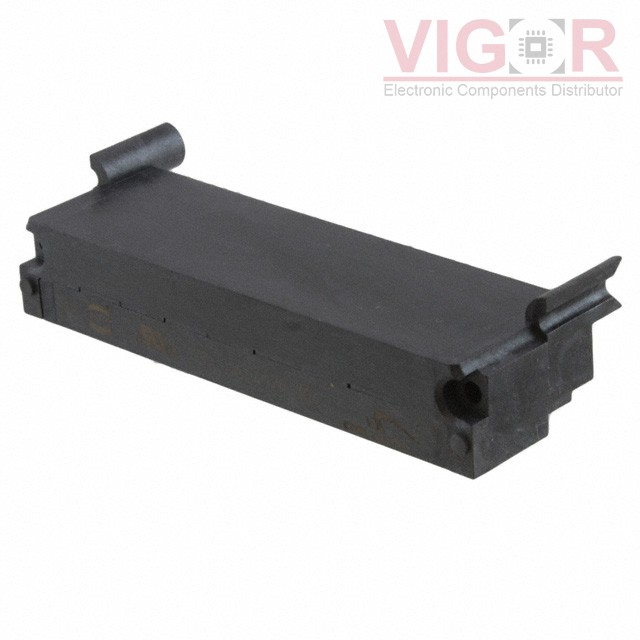

Image is for reference,
please contact us to get the real picture

Part No :: 16041705104000

Manufacturer: HARTING

Description: CONN HEADER AMC 170POS PCB

Catalog: Backplane Connectors - Specialized

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: 16041705104000 PDF

Availability: 39 pieces

Unit Price: ~~$45.02000~~

Current price of 16041705104000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

16041705104000 Specifications

Type	Description
Series:	ATCA / mTCA
Package:	Box
Part Status:	Active
Connector Usage:	Backplane-to-Daughtercard
Connector Type:	Header, Male Pins
Connector Style:	AdvancedMC
Number of Positions:	170
Number of Positions Loaded:	All
Pitch:	0.029" (0.75mm)
Number of Rows:	2
Number of Columns:	-
Mounting Type:	Through Hole, Right Angle
Termination:	Press-Fit
Contact Layout, Typical:	-
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	Flash
Color:	Black

Please confirm the specifications of the products when ordering.
