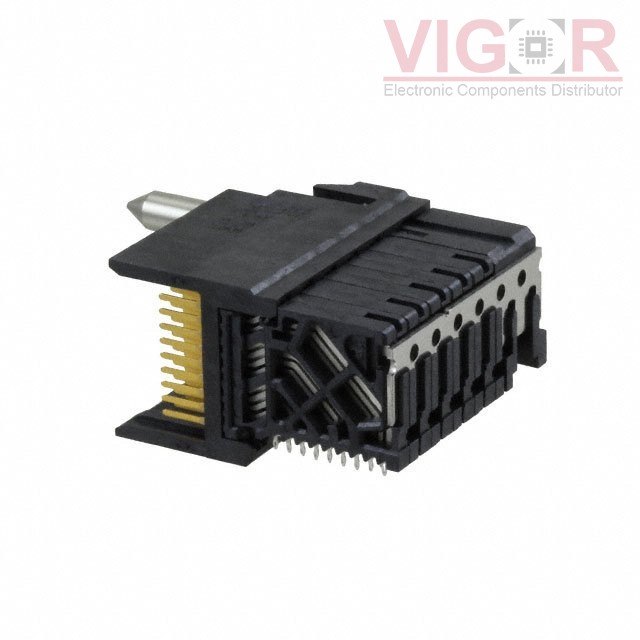

Image is for reference,
please contact us to get the real picture

Part No :

0764103107

Manufacturer
Woodhead - Molex
Description
CONN HDR IMPACT 90POS EDGE MNT
Catalog
Backplane Connectors - Specialized
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
0764103107 PDF
Availability
305 pieces
Unit Price
$17.84000

Current price of 0764103107 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0764103107 Specifications
Type Description
Series:Impact 76410
Package:Tray
Part Status:Active
Connector Usage:-
Connector Type:Header, Male Pins
Connector Style:Impact, Guide Left
Number of Positions:90
Number of Positions Loaded:All
Pitch:0.053" (1.35mm)
Number of Rows:9
Number of Columns:10
Mounting Type:Board Edge, Through Hole, Right Angle
Termination:Press-Fit
Contact Layout, Typical:30 Differential Pairs
Features:Board Guide
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Color:Black
