DWRT820SV23301

DWRT820SV23301

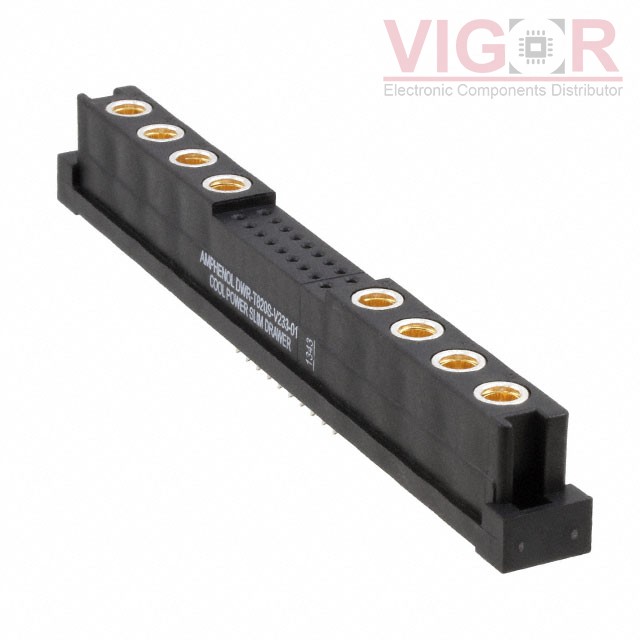

Image is for reference,
please contact us to get the real picture

Part No :

DWRT820SV23301

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN RCPT DRAWER 28POS PCB
Catalog
Backplane Connectors - Specialized
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
DWRT820SV23301 PDF
Availability
0 pieces
Unit Price
$27.02150

Current price of DWRT820SV23301 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DWRT820SV23301 Specifications
Type Description
Series:DWR, CoolPower®
Package:Tray
Part Status:Active
Connector Usage:Backplane
Connector Type:Receptacle, Female Sockets
Connector Style:Drawer
Number of Positions:28
Number of Positions Loaded:All
Pitch:0.108" (2.74mm)
Number of Rows:2
Number of Columns:-
Mounting Type:Through Hole, Right Angle
Termination:Solder
Contact Layout, Typical:20 Signal, 8 Power
Features:Board Guide, Mating Guide
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Color:Black
