0761703420

0761703420

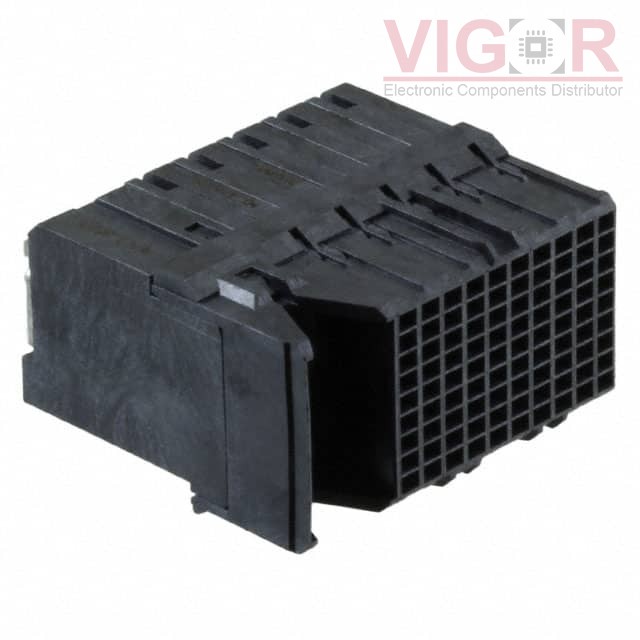

Image is for reference,
please contact us to get the real picture

Part No :

0761703420

Manufacturer
Woodhead - Molex
Description
CONN RCPT IMPACT 90POS EDGE MNT
Catalog
Backplane Connectors - Specialized
Shipped from
HK warehouse
Expected Shipping Date
Jun 29 - Jul 03 2025
DataSheet
0761703420 PDF
Availability
0 pieces
Unit Price
$10.49352

Current price of 0761703420 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0761703420 Specifications
Type Description
Series:Impact 76170
Package:Tray
Part Status:Active
Connector Usage:-
Connector Type:Receptacle, Female Sockets
Connector Style:Impact, Guide Left
Number of Positions:90
Number of Positions Loaded:All
Pitch:0.053" (1.35mm)
Number of Rows:9
Number of Columns:10
Mounting Type:Board Edge, Through Hole, Right Angle
Termination:Press-Fit
Contact Layout, Typical:30 Differential Pairs
Features:Board Guide
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Color:Black
