10113947-L0C-20DLF

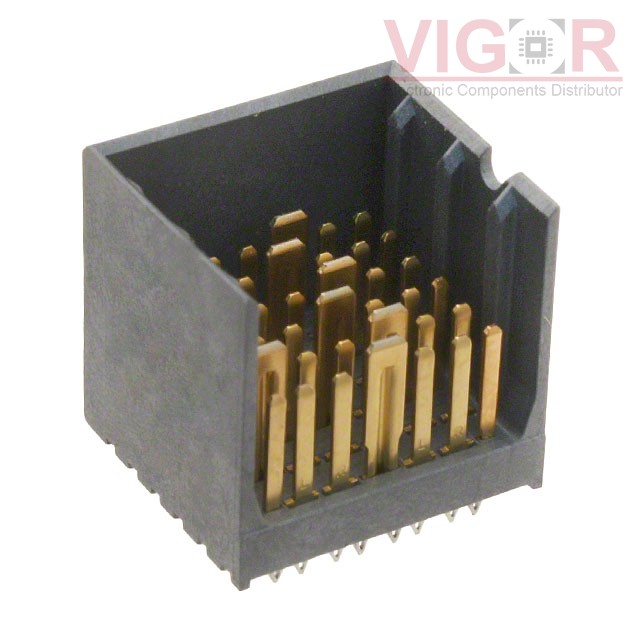

Image is for reference,
please contact us to get the real picture

Part No :: 10113947-L0C-20DLF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN HEADER XCEDE PCB

Catalog: Backplane Connectors - Specialized

Shipped from: HK warehouse

Expected Shipping Date: Jul 16 - Jul 20 2025

DataSheet: 10113947-L0C-20DLF PDF

Availability: 0 pieces

Unit Price: ~~$8.51000~~

Current price of 10113947-L0C-20DLF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

10113947-L0C-20DLF Specifications

Type	Description
Series:	XCede®
Package:	Tray
Part Status:	Obsolete
Connector Usage:	Backplane
Connector Type:	Header, Male Pins and Blades
Connector Style:	XCede®, Left Wall
Number of Positions:	-
Number of Positions Loaded:	All
Pitch:	-
Number of Rows:	-
Number of Columns:	6
Mounting Type:	Through Hole
Termination:	Press-Fit
Contact Layout, Typical:	12 Signal Pairs, 15 Ground
Features:	-
Contact Finish:	Gold or Gold, GXT™
Contact Finish Thickness:	30.0µin (0.76µm)
Color:	-
