10077555-101LF

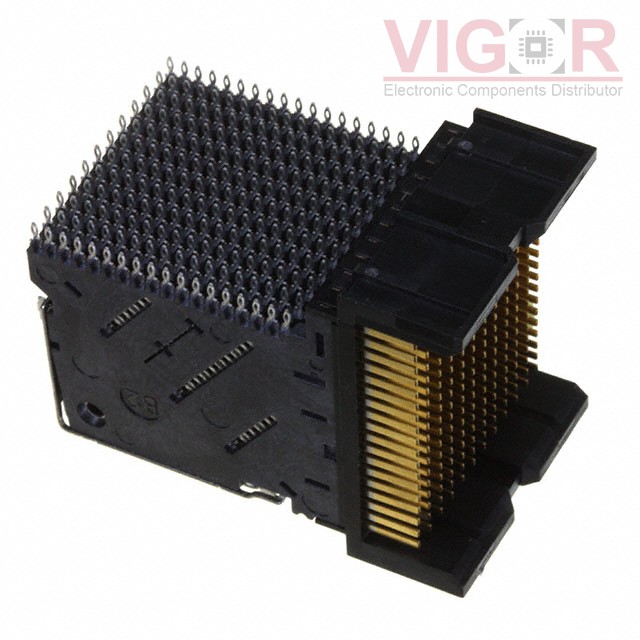

Image is for reference,
please contact us to get the real picture

Part No :: 10077555-101LF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN HEADER HD 216POS EDGE MNT

Catalog: Backplane Connectors - Specialized

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: 10077555-101LF PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of 10077555-101LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

10077555-101LF Specifications

Type	Description
Series:	ZipLine™
Package:	Tube
Part Status:	Obsolete
Connector Usage:	Backplane
Connector Type:	Header, Male Pins
Connector Style:	High Density (HDC, HDI, HPC)
Number of Positions:	216
Number of Positions Loaded:	All
Pitch:	0.071" (1.80mm)
Number of Rows:	18
Number of Columns:	12
Mounting Type:	Board Edge, Through Hole, Right Angle
Termination:	Press-Fit
Contact Layout, Typical:	72 Signal Pairs, 72 Ground
Features:	-
Contact Finish:	Gold or Gold, GXT™
Contact Finish Thickness:	30.0µin (0.76µm)
Color:	Black

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

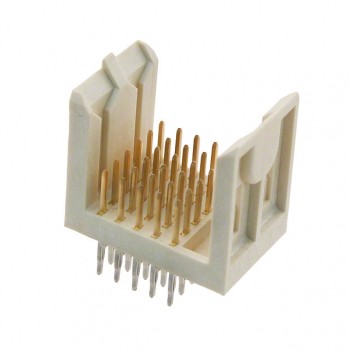

89006-110LF

CONN HEADER 30POS PCB

HOT

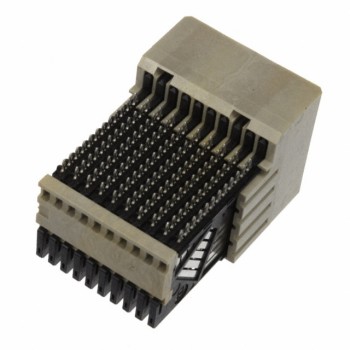

10028436-101LF

CONN HDR HI SPEED 120POS EDGE MT

HOT

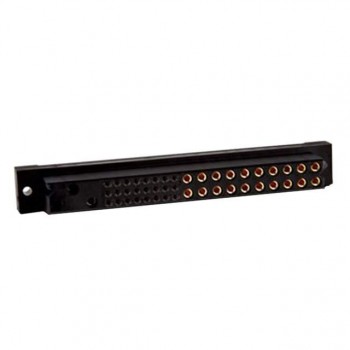

3P02-2002-G
