STX-3200-5CB

STX-3200-5CB

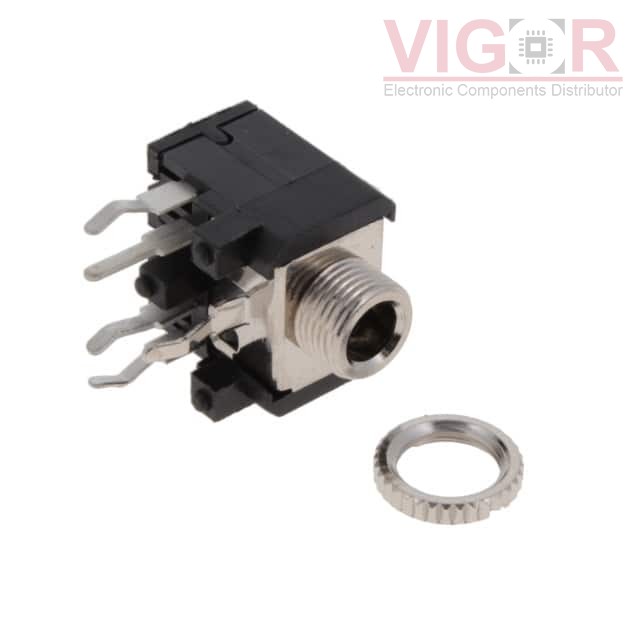

Image is for reference,
please contact us to get the real picture

Part No :

STX-3200-5CB

Manufacturer
Kycon
Description
STEREO JACK THREADED SHIELD W/NU
Catalog
Barrel - Audio Connectors
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2024
DataSheet
STX-3200-5CB PDF
Availability
490 pieces
Unit Price
$1.39000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of STX-3200-5CB is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

STX-3200-5CB Specifications
Type Description
Series:STX-3200
Package:Bulk
Part Status:Active
Connector Type:Phone Jack
Gender:Female
Signal Lines:Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter:3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:0.142" (3.60mm)
Number of Positions/Contacts:3 Conductors, 5 Contacts
Internal Switch(s):Two Switches
Mounting Type:Through Hole, Right Angle
Termination:Kinked Pin
Shielding:Unshielded
Features:Board Guide, Thread Lock
Insulation Color:-
Operating Temperature:-25°C ~ 100°C
