PJRAN3X1U02X

PJRAN3X1U02X

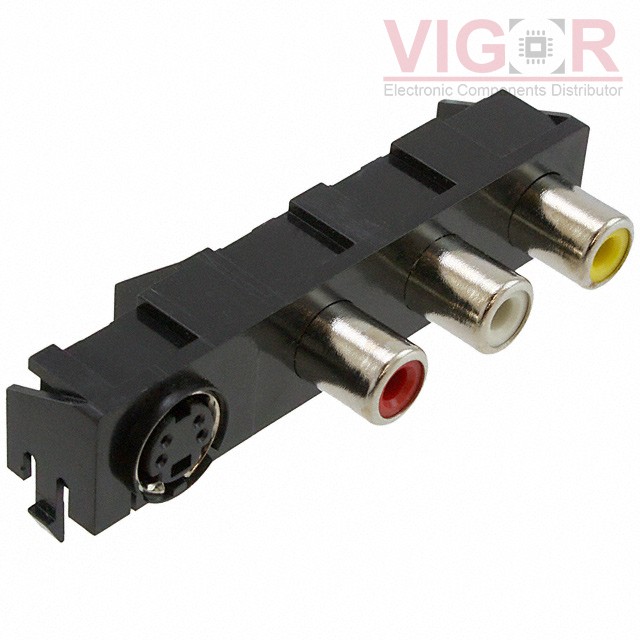

Image is for reference,
please contact us to get the real picture

Part No :

PJRAN3X1U02X

Manufacturer
Switchcraft / Conxall
Description
CONN RCA JACK MONO 3.2MM R/A
Catalog
Barrel - Audio Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
PJRAN3X1U02X PDF
Availability
82 pieces
Unit Price
$5.28000

Current price of PJRAN3X1U02X is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJRAN3X1U02X Specifications
Type Description
Series:PJR
Package:Bulk
Part Status:Active
Connector Type:Phono (RCA) Jack
Gender:Female
Signal Lines:Mono
Industry Recognized Mating Diameter:3.20mm ID, 9.00mm OD (RCA)
Actual Diameter:-
Number of Positions/Contacts:3 Sets of 2 Conductors, 9 Contacts
Internal Switch(s):Single Switch
Mounting Type:Through Hole, Right Angle
Termination:Solder
Shielding:Unshielded
Features:-
Insulation Color:Red, White, Yellow
Operating Temperature:-25°C ~ 85°C
