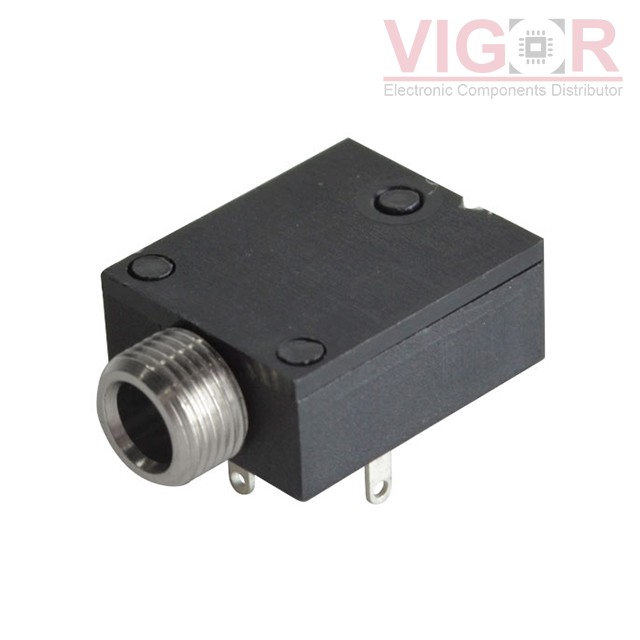

SJ1-3514

Image is for reference,
please contact us to get the real picture

Part No :: SJ1-3514

Manufacturer: CUI Devices

Description: CONN JACK STEREO 3.5MM R/A

Catalog: Barrel - Audio Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 11 - Jul 15 2025

DataSheet: SJ1-3514 PDF

Availability: 2709 pieces

Unit Price: ~~$1.45000~~

Current price of SJ1-3514 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SJ1-3514 Specifications

Type	Description
Series:	SJ1
Package:	Tray
Part Status:	Active
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter:	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:	0.142" (3.60mm)
Number of Positions/Contacts:	3 Conductors, 4 Contacts
Internal Switch(s):	Single Switch
Mounting Type:	Panel Mount, Through Hole, Right Angle
Termination:	Solder Eyelet(s)
Shielding:	Unshielded
Features:	Mounting Hardware, Thread Lock
Insulation Color:	-
Operating Temperature:	-25°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

983TR

CONN JACK MONO 3.5MM SMD R/A

HOT

SJ-43515TS

CONN JACK 4COND 3.5MM R/A

HOT

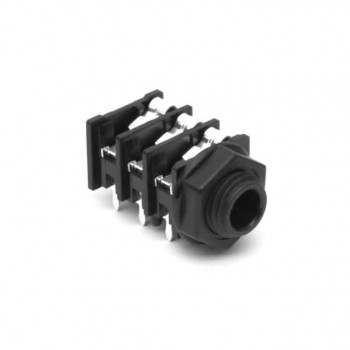

ACJM-PHOP-1
