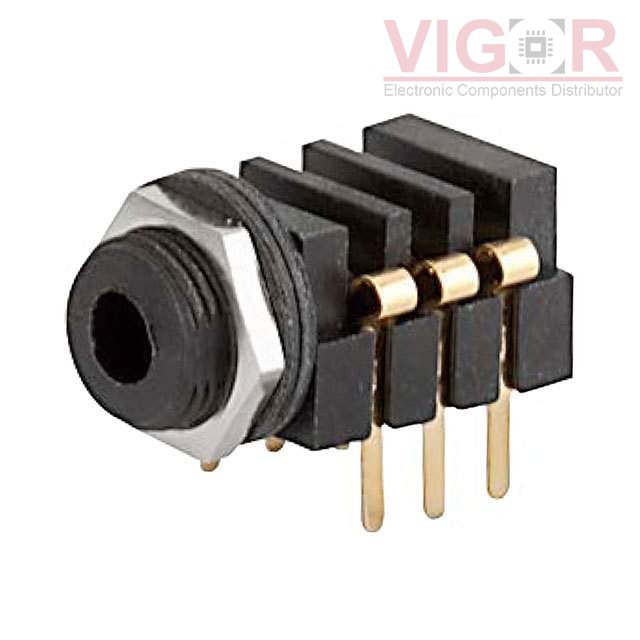

4802.2330

4802.2330

Image is for reference,
please contact us to get the real picture

Part No :

4802.2330

Manufacturer
Schurter
Description
CONN JACK STEREO 3.5MM R/A
Catalog
Barrel - Audio Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
4802.2330 PDF
Availability
114 pieces
Unit Price
$6.94000

Current price of 4802.2330 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

4802.2330 Specifications
Type Description
Series:4802
Package:Bulk
Part Status:Active
Connector Type:Phone Jack
Gender:Female
Signal Lines:Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter:3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:0.146" (3.70mm)
Number of Positions/Contacts:3 Conductors, 6 Contacts
Internal Switch(s):Three Switches
Mounting Type:Panel Mount, Through Hole, Right Angle
Termination:Solder
Shielding:Unshielded
Features:Mounting Hardware, Thread Lock
Insulation Color:-
Operating Temperature:-20°C ~ 70°C
