ASJ-165-M-G-HDW-1

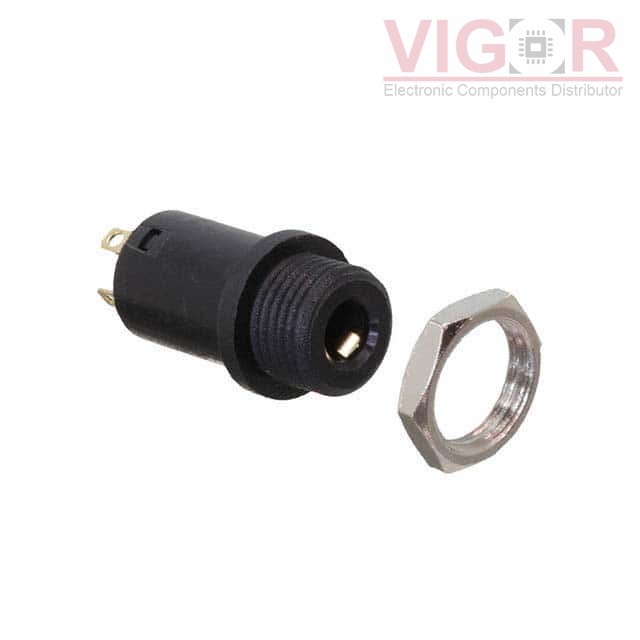

Image is for reference,
please contact us to get the real picture

Part No :: ASJ-165-M-G-HDW-1

Manufacturer: Adam Tech

Description: AUDIO JACK

Catalog: Barrel - Audio Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 16 - Jul 20 2025

DataSheet: ASJ-165-M-G-HDW-1 PDF

Availability: 0 pieces

Unit Price: ~~$0.94000~~

Current price of ASJ-165-M-G-HDW-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ASJ-165-M-G-HDW-1 Specifications

Type	Description
Series:	ASJ
Package:	Bulk
Part Status:	Active
Connector Type:	Phone Jack
Gender:	Female
Signal Lines:	Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter:	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:	0.142" (3.60mm)
Number of Positions/Contacts:	3 Conductors, 4 Contacts
Internal Switch(s):	Does Not Contain Switch
Mounting Type:	Panel Mount, Through Hole
Termination:	Solder Eyelet(s)
Shielding:	Unshielded
Features:	Thread Lock
Insulation Color:	Black
Operating Temperature:	-20°C ~ 70°C
