SJ-3514-SMT-1

SJ-3514-SMT-1

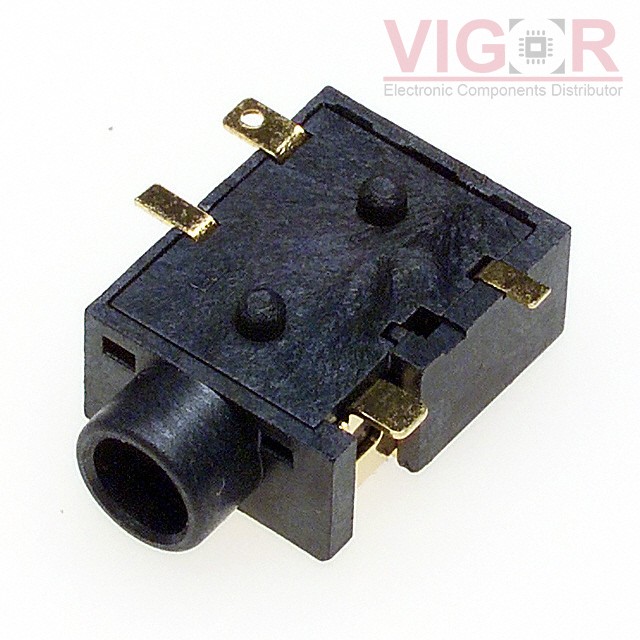

Image is for reference,
please contact us to get the real picture

Part No :

SJ-3514-SMT-1

Manufacturer
CUI Devices
Description
CONN JACK STEREO 3.5MM SMD R/A
Catalog
Barrel - Audio Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
SJ-3514-SMT-1 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SJ-3514-SMT-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SJ-3514-SMT-1 Specifications
Type Description
Series:SJ
Package:-
Part Status:Obsolete
Connector Type:Phone Jack
Gender:Female
Signal Lines:Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter:3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:0.142" (3.60mm)
Number of Positions/Contacts:3 Conductors, 4 Contacts
Internal Switch(s):Single Switch
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Shielding:Unshielded
Features:Board Guide
Insulation Color:-
Operating Temperature:-25°C ~ 85°C
