PJ-037BH-SMT-TR

PJ-037BH-SMT-TR

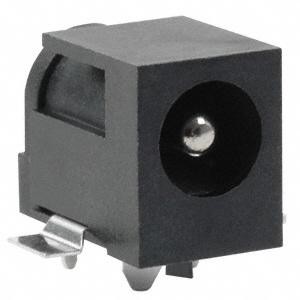

Image is for reference,
please contact us to get the real picture

Part No :

PJ-037BH-SMT-TR

Manufacturer
CUI Devices
Description
CONN PWR JACK 2.5X5.5MM SOLDER
Catalog
Barrel - Power Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
PJ-037BH-SMT-TR PDF
Availability
5593 pieces
Unit Price
$1.36000

Current price of PJ-037BH-SMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJ-037BH-SMT-TR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter:0.098" (2.50mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts:2 Conductors, 3 Contacts
Internal Switch(s):Single Switch, Normally Closed
Mounting Type:Surface Mount, Right Angle
Mounting Feature:-
Termination:Solder
Shielding:Unshielded
Features:Solder Retention
Insulation Color:-
Voltage - Rated:24VDC
Current Rating (Amps):5 A
Mating Length/Depth:0.360" (9.15mm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
