PJ-040-SMT-TR

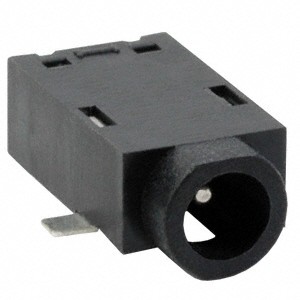

Image is for reference,
please contact us to get the real picture

Part No :: PJ-040-SMT-TR

Manufacturer: CUI Devices

Description: CONN PWR JACK 0.7X2.35MM SOLDER

Catalog: Barrel - Power Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 16 - Jul 20 2025

DataSheet: PJ-040-SMT-TR PDF

Availability: 0 pieces

Unit Price: ~~$1.01000~~

Current price of PJ-040-SMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJ-040-SMT-TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter:	0.026" (0.65mm ID), 0.102" (2.60mm OD)
Number of Positions/Contacts:	2 Conductors, 2 Contacts
Internal Switch(s):	Does Not Contain Switch
Mounting Type:	Surface Mount, Right Angle
Mounting Feature:	-
Termination:	Solder
Shielding:	Unshielded
Features:	Board Guide
Insulation Color:	-
Voltage - Rated:	24VDC
Current Rating (Amps):	1 A
Mating Length/Depth:	0.303" (7.70mm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
