54-00168

54-00168

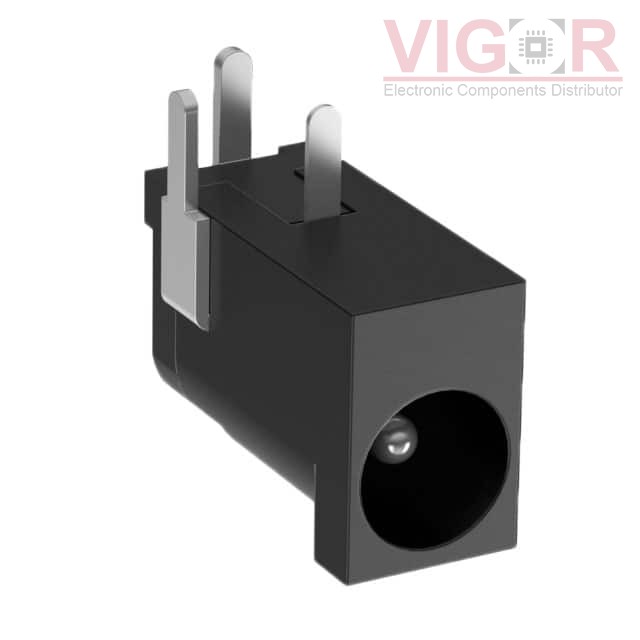

Image is for reference,
please contact us to get the real picture

Part No :

54-00168

Manufacturer
Tensility International Corporation
Description
CONN JACK R/A PCB 3.5X1.35MM
Catalog
Barrel - Power Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
54-00168 PDF
Availability
3117 pieces
Unit Price
$0.45000

Current price of 54-00168 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

54-00168 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:1.35mm ID (0.053"), 3.50mm OD (0.138")
Actual Diameter:0.051" (1.30mm ID), 0.169" (4.30mm OD)
Number of Positions/Contacts:2 Conductors, 3 Contacts
Internal Switch(s):Single Switch, Normally Closed
Mounting Type:Through Hole, Right Angle
Mounting Feature:-
Termination:Solder
Shielding:Unshielded
Features:-
Insulation Color:-
Voltage - Rated:48V
Current Rating (Amps):5.5 A
Mating Length/Depth:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
