PJ-036CH

PJ-036CH

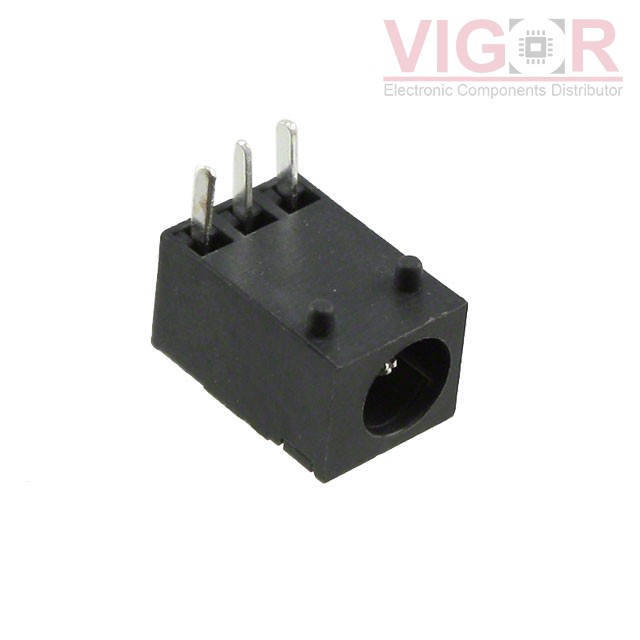

Image is for reference,
please contact us to get the real picture

Part No :

PJ-036CH

Manufacturer
CUI Devices
Description
CONN PWR JACK 1X3.4MM SOLDER
Catalog
Barrel - Power Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
PJ-036CH PDF
Availability
85968 pieces
Unit Price
$0.74000

Current price of PJ-036CH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJ-036CH Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:1.00mm ID (0.039"), 3.40mm OD (0.134")
Actual Diameter:0.039" (1.00mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts:2 Conductors, 3 Contacts
Internal Switch(s):Single Switch, Normally Closed
Mounting Type:Through Hole, Right Angle
Mounting Feature:-
Termination:Solder
Shielding:Unshielded
Features:Board Guide
Insulation Color:-
Voltage - Rated:24VDC
Current Rating (Amps):3.5 A
Mating Length/Depth:0.260" (6.60mm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
