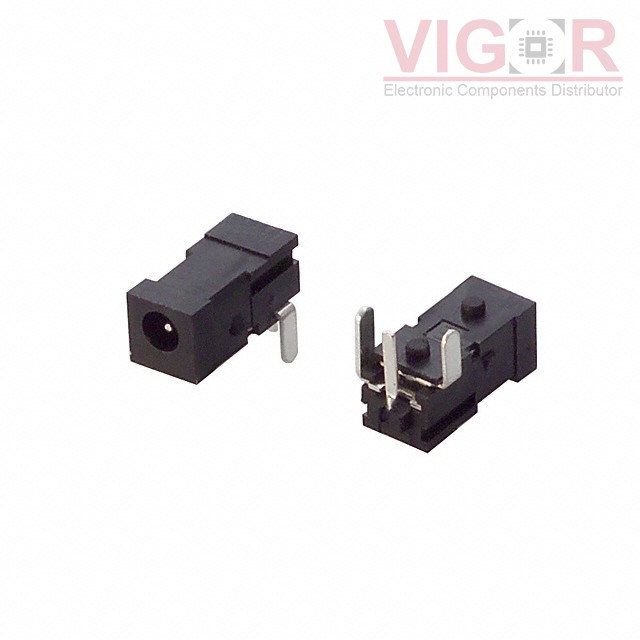

PJ1-022

PJ1-022

Image is for reference,
please contact us to get the real picture

Part No :

PJ1-022

Manufacturer
CUI Devices
Description
CONN PWR JACK 0.7X2.35MM SOLDER
Catalog
Barrel - Power Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
PJ1-022 PDF
Availability
0 pieces
Unit Price
$0.80000

Current price of PJ1-022 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJ1-022 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter:0.026" (0.65mm ID), 0.110" (2.80mm OD)
Number of Positions/Contacts:2 Conductors, 3 Contacts
Internal Switch(s):Single Switch, Normally Closed
Mounting Type:Through Hole, Right Angle
Mounting Feature:-
Termination:Solder
Shielding:Unshielded
Features:Board Guide
Insulation Color:-
Voltage - Rated:24VDC
Current Rating (Amps):1 A
Mating Length/Depth:0.315" (8.00mm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
