PJ1-023-SMT-TR

PJ1-023-SMT-TR

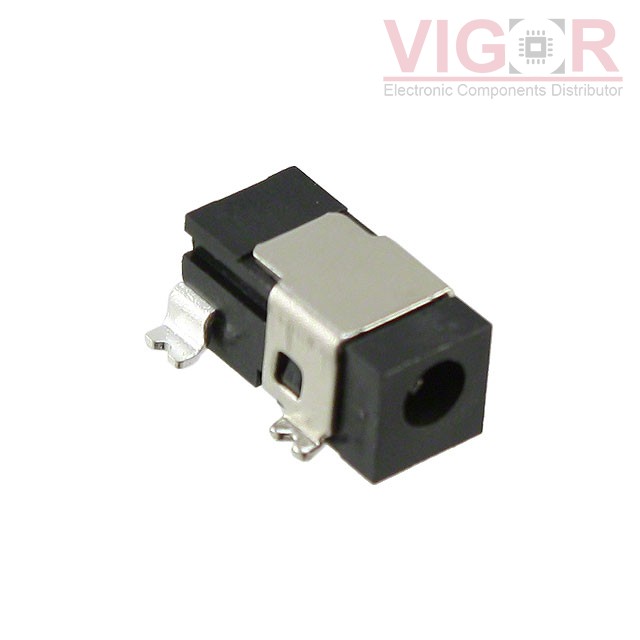

Image is for reference,
please contact us to get the real picture

Part No :

PJ1-023-SMT-TR

Manufacturer
CUI Devices
Description
CONN PWR JACK 0.7X2.35MM SOLDER
Catalog
Barrel - Power Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
PJ1-023-SMT-TR PDF
Availability
5600 pieces
Unit Price
$0.96000

Current price of PJ1-023-SMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJ1-023-SMT-TR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter:0.026" (0.65mm ID), 0.110" (2.80mm OD)
Number of Positions/Contacts:2 Conductors, 3 Contacts
Internal Switch(s):Single Switch, Normally Closed
Mounting Type:Surface Mount, Right Angle
Mounting Feature:-
Termination:Solder
Shielding:Shielded
Features:Board Guide
Insulation Color:-
Voltage - Rated:24VDC
Current Rating (Amps):2.5 A
Mating Length/Depth:0.315" (8.00mm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
