PJ-092H-MSMT-TR

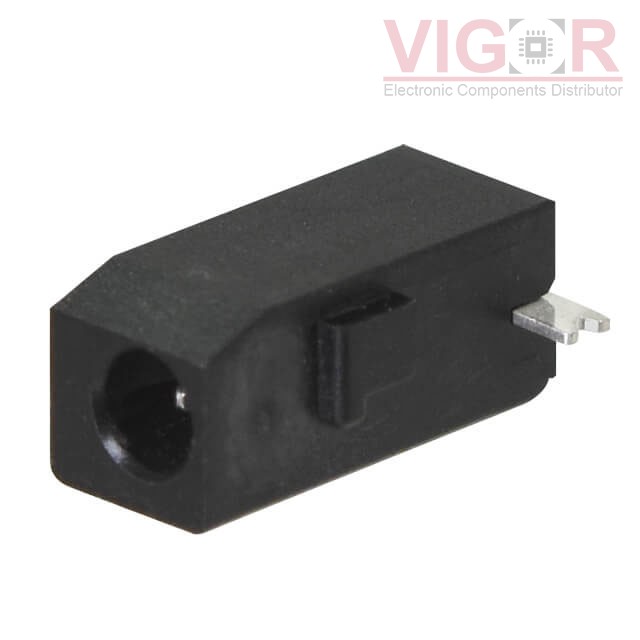

Image is for reference,
please contact us to get the real picture

Part No :: PJ-092H-MSMT-TR

Manufacturer: CUI Devices

Description: PWR JACK 0.65X2.75MM HORIZONTAL

Catalog: Barrel - Power Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 17 - Jul 21 2025

DataSheet: PJ-092H-MSMT-TR PDF

Availability: 1162 pieces

Unit Price: ~~$1.02000~~

Current price of PJ-092H-MSMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJ-092H-MSMT-TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	0.65mm ID (0.026"), 2.35mm OD (0.093")
Actual Diameter:	0.026" (0.65mm ID), 0.108" (2.75mm OD)
Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed
Mounting Type:	Board Cutout, Surface Mount, Right Angle
Mounting Feature:	-
Termination:	Solder
Shielding:	Shielded
Features:	Board Guide
Insulation Color:	-
Voltage - Rated:	24VDC
Current Rating (Amps):	2.5 A
Mating Length/Depth:	0.315" (8.00mm)
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
