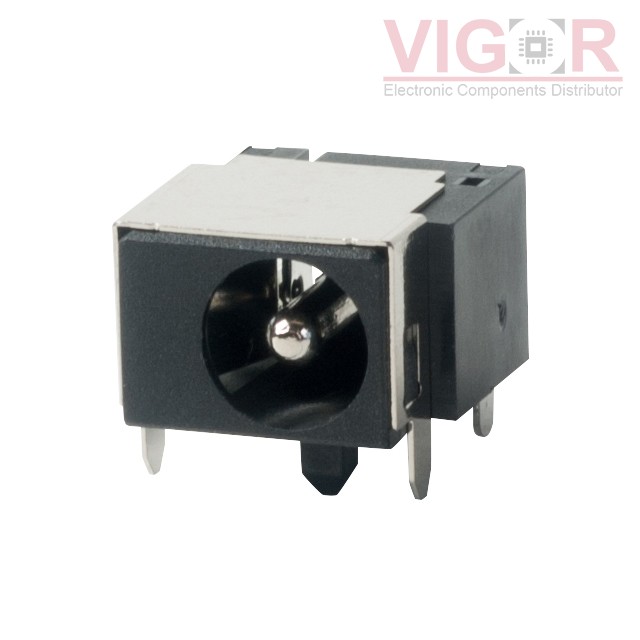

PJ-076

PJ-076

Image is for reference,
please contact us to get the real picture

Part No :

PJ-076

Manufacturer
CUI Devices
Description
CONN PWR JACK 1.65X5.5MM SOLDER
Catalog
Barrel - Power Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
PJ-076 PDF
Availability
460 pieces
Unit Price
$0.98000

Current price of PJ-076 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJ-076 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:1.65mm ID (0.065"), 5.50mm OD (0.217")
Actual Diameter:0.065" (1.65mm ID), 0.236" (6.00mm OD)
Number of Positions/Contacts:3 Conductors, 4 Contacts
Internal Switch(s):Single Switch, Normally Closed
Mounting Type:Through Hole, Right Angle
Mounting Feature:-
Termination:Solder
Shielding:Shielded
Features:Board Guide
Insulation Color:-
Voltage - Rated:24VDC
Current Rating (Amps):2.5 A
Mating Length/Depth:0.323" (8.20mm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
