PJ-074-SMT-TR

PJ-074-SMT-TR

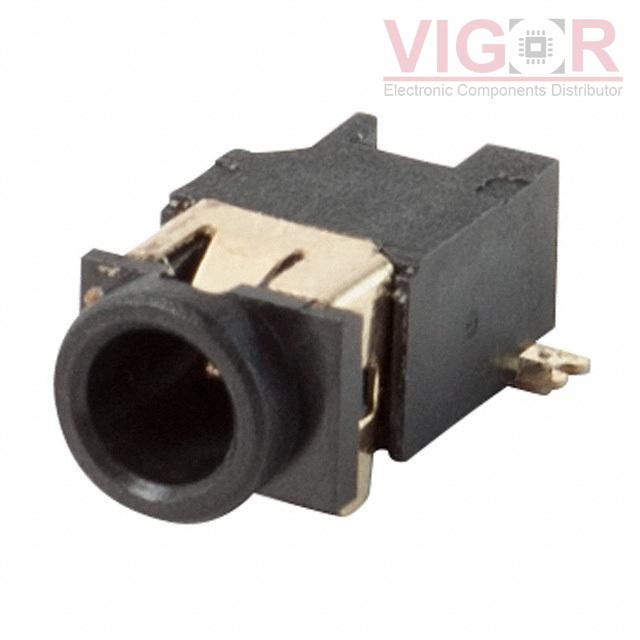

Image is for reference,
please contact us to get the real picture

Part No :

PJ-074-SMT-TR

Manufacturer
CUI Devices
Description
CONN PWR JACK 0.9X3.2MM SOLDER
Catalog
Barrel - Power Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
PJ-074-SMT-TR PDF
Availability
945 pieces
Unit Price
$0.99000

Current price of PJ-074-SMT-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PJ-074-SMT-TR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:0.90mm ID (0.035"), 3.20mm OD (0.126")
Actual Diameter:0.031" (0.80mm ID), 0.132" (3.35mm OD)
Number of Positions/Contacts:3 Conductors, 3 Contacts
Internal Switch(s):Does Not Contain Switch
Mounting Type:Surface Mount, Right Angle
Mounting Feature:-
Termination:Solder
Shielding:Shielded
Features:Board Guide
Insulation Color:-
Voltage - Rated:24VDC
Current Rating (Amps):2 A
Mating Length/Depth:0.283" (7.20mm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
