RAPC752SX

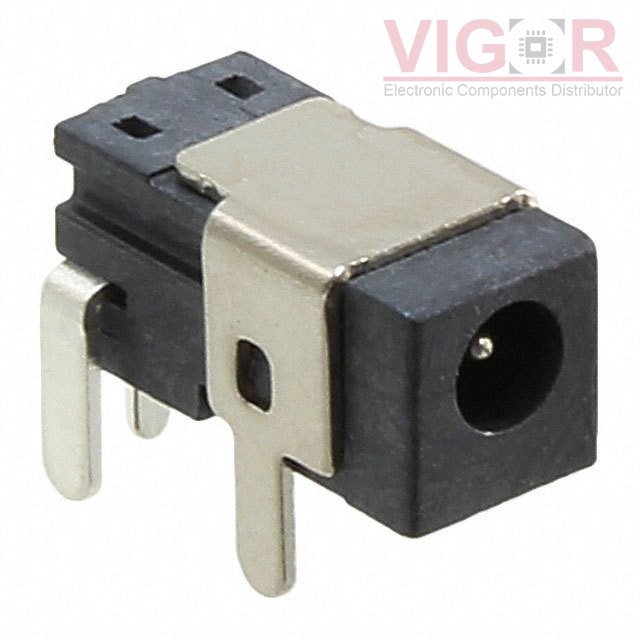

Image is for reference,
please contact us to get the real picture

Part No :: RAPC752SX

Manufacturer: Switchcraft / Conxall

Description: CONN PWR JACK 0.7X2.35MM SOLDER

Catalog: Barrel - Power Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: RAPC752SX PDF

Availability: 482 pieces

Unit Price: ~~$1.51000~~

Current price of RAPC752SX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RAPC752SX Specifications

Type	Description
Series:	-
Package:	-
Part Status:	Active
Connector Type:	Jack
Gender:	Male
Industry Recognized Mating Diameter:	0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter:	0.026" (0.65mm ID), 0.108" (2.75mm OD)
Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch, Normally Closed
Mounting Type:	Through Hole, Right Angle
Mounting Feature:	-
Termination:	Solder
Shielding:	Shielded
Features:	-
Insulation Color:	-
Voltage - Rated:	-
Current Rating (Amps):	3 A
Mating Length/Depth:	-
Ingress Protection:	-
Material Flammability Rating:	-

Please confirm the specifications of the products when ordering.
