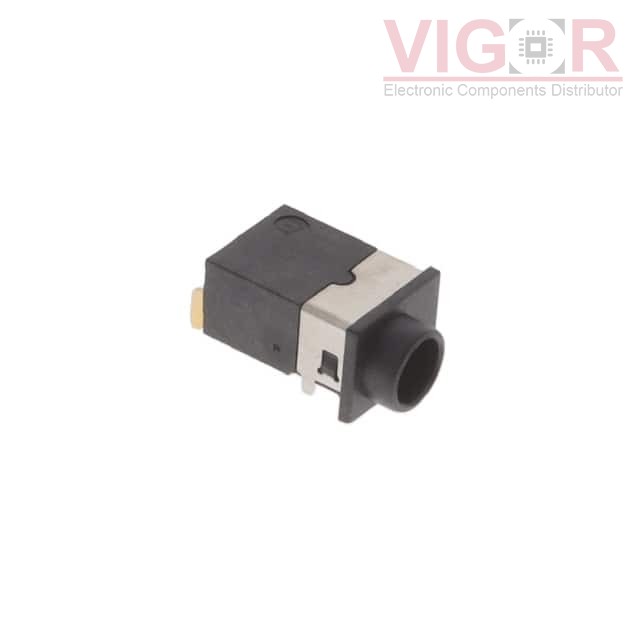

ADC-114B-4-WP-HT-T/R

ADC-114B-4-WP-HT-T/R

Image is for reference,
please contact us to get the real picture

Part No :

ADC-114B-4-WP-HT-T/R

Manufacturer
Adam Tech
Description
DC POWER JACK, WATERPROOF
Catalog
Barrel - Power Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
ADC-114B-4-WP-HT-T/R PDF
Availability
0 pieces
Unit Price
$2.30000

Current price of ADC-114B-4-WP-HT-T/R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADC-114B-4-WP-HT-T/R Specifications
Type Description
Series:ADC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Jack
Gender:Male
Industry Recognized Mating Diameter:1.30mm ID (0.051"), 3.50mm OD (0.138")
Actual Diameter:0.051" (1.30mm ID), 0.150" (3.80mm OD)
Number of Positions/Contacts:2 Conductors, 3 Contacts
Internal Switch(s):Single Switch, Normally Closed
Mounting Type:Through Hole, Right Angle
Mounting Feature:-
Termination:Solder
Shielding:Shielded
Features:Board Guide, Solder Retention
Insulation Color:Black
Voltage - Rated:16VDC
Current Rating (Amps):3.5 A
Mating Length/Depth:0.374" (9.50mm)
Ingress Protection:IPX7 - Waterproof
Material Flammability Rating:UL94 V-0
