EBM28MMNN

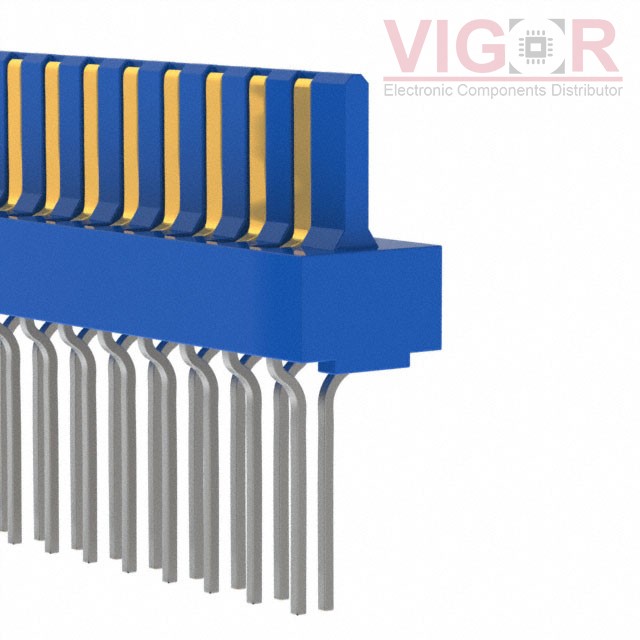

Image is for reference,
please contact us to get the real picture

Part No :: EBM28MMNN

Manufacturer: Sullins Connector Solutions

Description: CONN CARDEDGE MALE 56POS 0.156

Catalog: Card Edge Connectors - Edgeboard Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: EBM28MMNN PDF

Availability: 0 pieces

Unit Price: ~~$7.87600~~

Current price of EBM28MMNN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EBM28MMNN Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Card Type:	Fits Female Edgecards
Gender:	Male
Number of Positions/Bay/Row:	28
Number of Positions:	56
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.156" (3.96mm)
Read Out:	Dual
Features:	Card Extender
Mounting Type:	Board Edge, Straddle Mount
Termination:	Solder
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Contact Type:	-
Color:	Blue
Flange Feature:	-
Operating Temperature:	-65°C ~ 125°C

Please confirm the specifications of the products when ordering.
