1761500-1

1761500-1

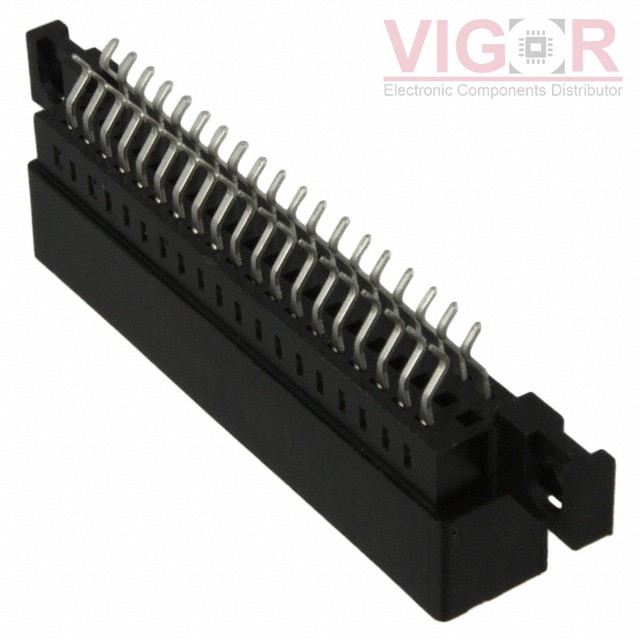

Image is for reference,
please contact us to get the real picture

Part No :

1761500-1

Manufacturer
TE Connectivity AMP Connectors
Description
CONN EDGE DUAL FMALE 26POS 0.100
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
1761500-1 PDF
Availability
4 pieces
Unit Price
$6.85000

Current price of 1761500-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1761500-1 Specifications
Type Description
Series:Standard Edge II
Package:Tray
Part Status:Active
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:1; 1; 1; 10
Number of Positions:26 (20 + 6 Power)
Card Thickness:0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows:2
Pitch:0.100" (2.54mm)
Read Out:Dual
Features:Card Extender
Mounting Type:Board Edge, Straddle Mount
Termination:Solder
Contact Material:Copper Alloy
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Contact Type:-
Color:Black
Flange Feature:Flush Mount, Side Opening, Unthreaded, 0.145" (3.68mm) Dia
Operating Temperature:-55°C ~ 85°C
