2322260-1

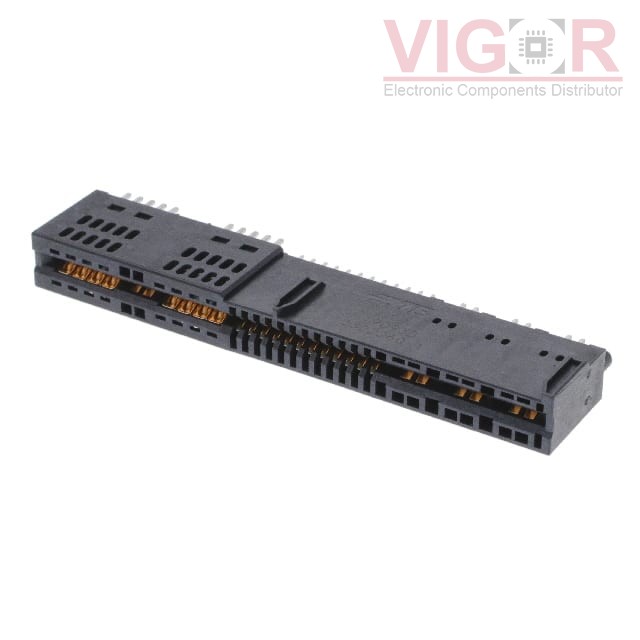

Image is for reference,
please contact us to get the real picture

Part No :: 2322260-1

Manufacturer: TE Connectivity AMP Connectors

Description: CONNECTOR ASSY

Catalog: Card Edge Connectors - Edgeboard Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: 2322260-1 PDF

Availability: 793 pieces

Unit Price: ~~$15.30000~~

Current price of 2322260-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2322260-1 Specifications

Type	Description
Series:	HD+
Package:	Tray
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	-
Number of Positions:	80
Card Thickness:	0.063" (1.60mm)
Number of Rows:	2
Pitch:	-
Read Out:	Dual
Features:	Board Guide
Mounting Type:	Through Hole
Termination:	Solder
Contact Material:	Copper Alloy
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Contact Type:	-
Color:	Black
Flange Feature:	-
Operating Temperature:	-40°C ~ 125°C
