EBC15MMWD

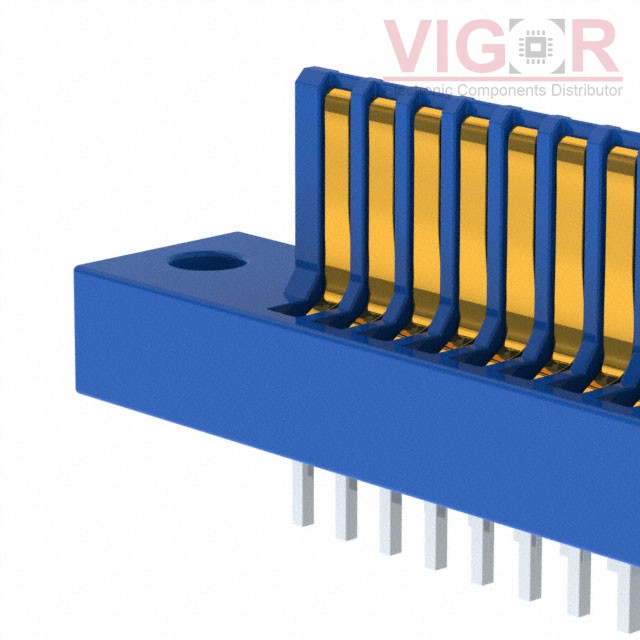

Image is for reference,
please contact us to get the real picture

Part No :: EBC15MMWD

Manufacturer: Sullins Connector Solutions

Description: CONN CARDEDGE MALE 30POS 0.100

Catalog: Card Edge Connectors - Edgeboard Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: EBC15MMWD PDF

Availability: 267 pieces

Unit Price: ~~$4.50000~~

Current price of EBC15MMWD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EBC15MMWD Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Card Type:	Fits Female Edgecards
Gender:	Male
Number of Positions/Bay/Row:	15
Number of Positions:	30
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.100" (2.54mm)
Read Out:	Dual
Features:	-
Mounting Type:	Through Hole
Termination:	Solder
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Contact Type:	-
Color:	Blue
Flange Feature:	Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature:	-65°C ~ 125°C

Please confirm the specifications of the products when ordering.
