ECM10MMWD

ECM10MMWD

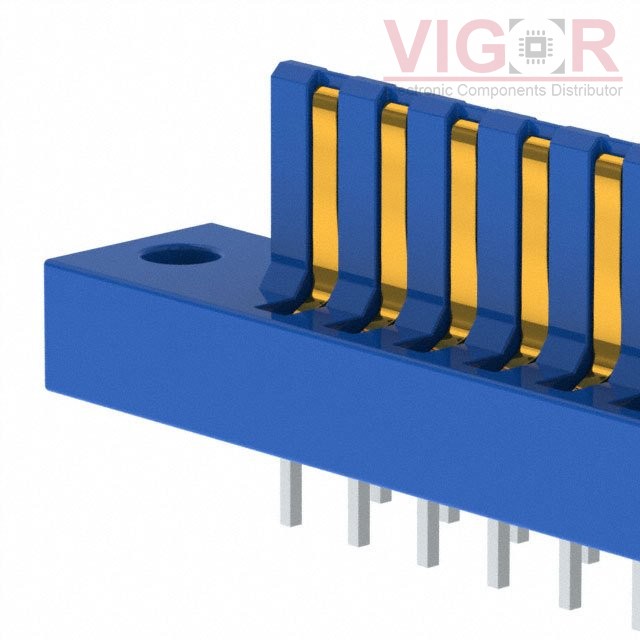

Image is for reference,
please contact us to get the real picture

Part No :

ECM10MMWD

Manufacturer
Sullins Connector Solutions
Description
CONN CARDEDGE MALE 20POS 0.156
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
ECM10MMWD PDF
Availability
0 pieces
Unit Price
$4.61800

Current price of ECM10MMWD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECM10MMWD Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Card Type:Fits Female Edgecards
Gender:Male
Number of Positions/Bay/Row:10
Number of Positions:20
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.156" (3.96mm)
Read Out:Dual
Features:-
Mounting Type:Through Hole
Termination:Solder
Contact Material:Phosphor Bronze
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Contact Type:-
Color:-
Flange Feature:Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature:-65°C ~ 125°C
