ECM16MMSD

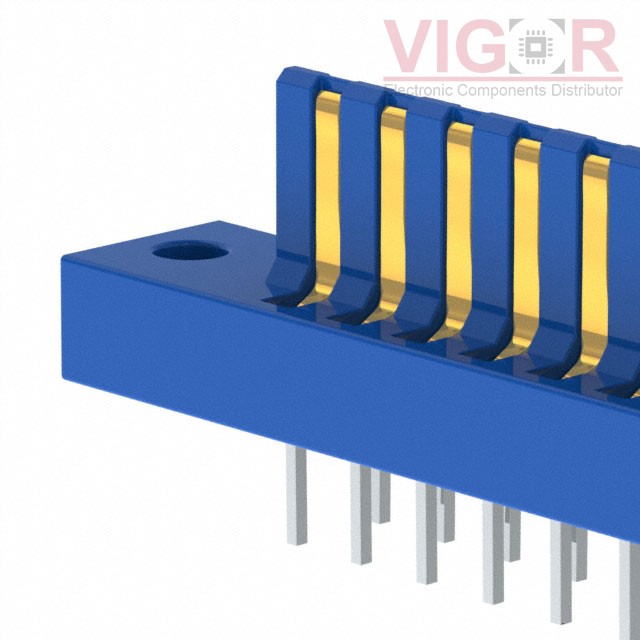

Image is for reference,
please contact us to get the real picture

Part No :: ECM16MMSD

Manufacturer: Sullins Connector Solutions

Description: CONN CARDEDGE MALE 32POS 0.156

Catalog: Card Edge Connectors - Edgeboard Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 13 - Jul 17 2025

DataSheet: ECM16MMSD PDF

Availability: 0 pieces

Unit Price: ~~$6.29300~~

Current price of ECM16MMSD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECM16MMSD Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Card Type:	Fits Female Edgecards
Gender:	Male
Number of Positions/Bay/Row:	16
Number of Positions:	32
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.156" (3.96mm)
Read Out:	Dual
Features:	-
Mounting Type:	Through Hole
Termination:	Solder
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Contact Type:	-
Color:	-
Flange Feature:	Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature:	-65°C ~ 125°C
