EBM22DKLH

EBM22DKLH

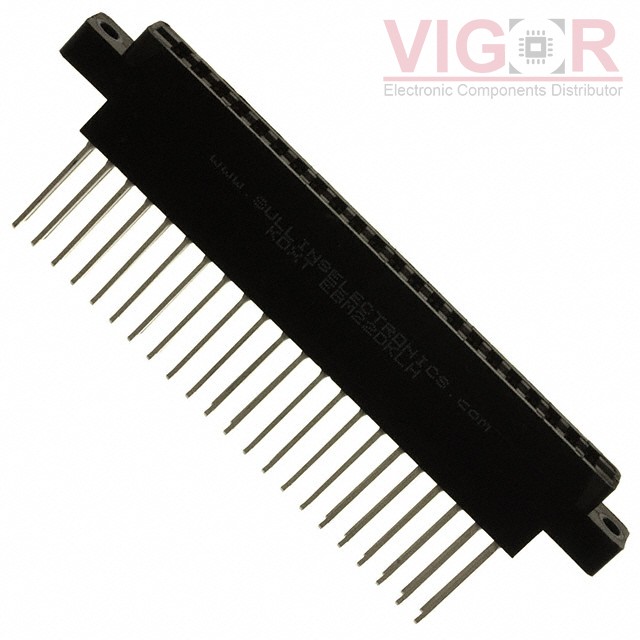

Image is for reference,
please contact us to get the real picture

Part No :

EBM22DKLH

Manufacturer
Sullins Connector Solutions
Description
CONN EDGE DUAL FMALE 44POS 0.156
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
EBM22DKLH PDF
Availability
0 pieces
Unit Price
$12.52000

Current price of EBM22DKLH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EBM22DKLH Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:22
Number of Positions:44
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.156" (3.96mm)
Read Out:Dual
Features:-
Mounting Type:Through Hole
Termination:Wire Wrap
Contact Material:Phosphor Bronze
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Contact Type:Cantilever
Color:Black
Flange Feature:Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature:-65°C ~ 125°C
