7-530666-2

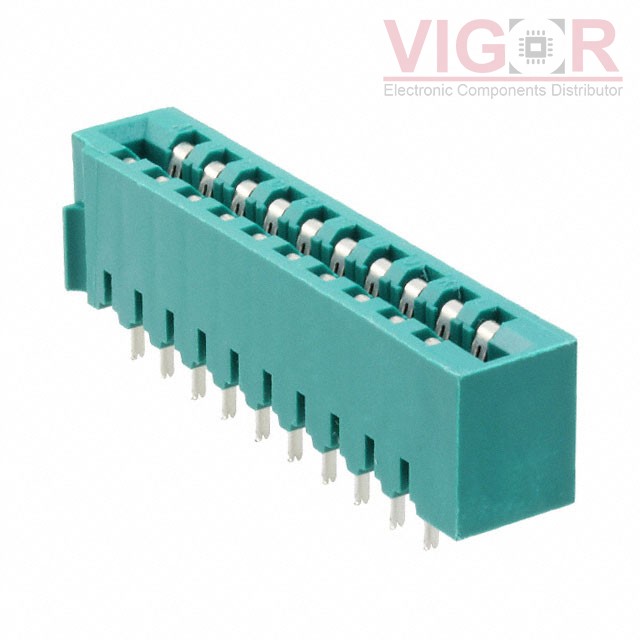

Image is for reference,
please contact us to get the real picture

Part No :: 7-530666-2

Manufacturer: TE Connectivity AMP Connectors

Description: CONN EDGE DUAL FMALE 20POS 0.156

Catalog: Card Edge Connectors - Edgeboard Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: 7-530666-2 PDF

Availability: 0 pieces

Unit Price: ~~$9.20000~~

Current price of 7-530666-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7-530666-2 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	10
Number of Positions:	20
Card Thickness:	0.055" ~ 0.070" (1.40mm ~ 1.78mm)
Number of Rows:	2
Pitch:	0.156" (3.96mm)
Read Out:	Dual
Features:	-
Mounting Type:	Through Hole
Termination:	Solder
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Contact Type:	-
Color:	Black
Flange Feature:	-
Operating Temperature:	-55°C ~ 105°C
