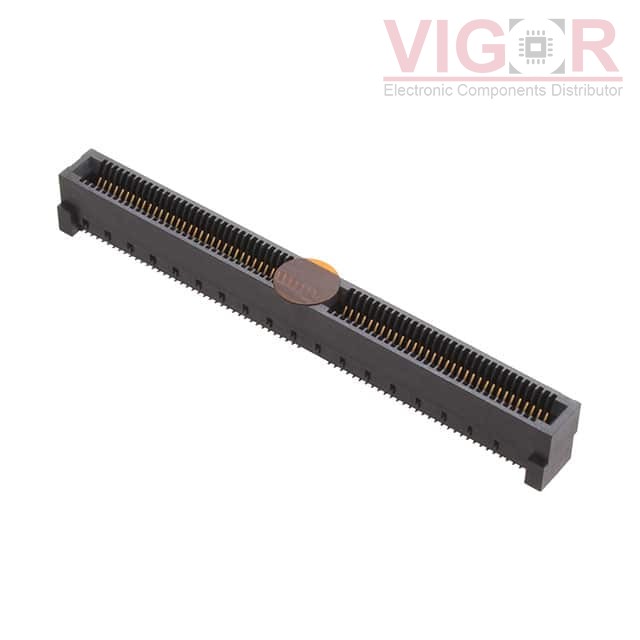

HSEC8-170-01-L-DV-A-K-TR

HSEC8-170-01-L-DV-A-K-TR

Image is for reference,
please contact us to get the real picture

Part No :

HSEC8-170-01-L-DV-A-K-TR

Manufacturer
Samtec, Inc.
Description
CONN EDGE DUAL FMALE 140P 0.031
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
HSEC8-170-01-L-DV-A-K-TR PDF
Availability
275 pieces
Unit Price
$5.62400

Current price of HSEC8-170-01-L-DV-A-K-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HSEC8-170-01-L-DV-A-K-TR Specifications
Type Description
Series:Edge Rate™ HSEC8
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:70
Number of Positions:140
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.031" (0.80mm)
Read Out:Dual
Features:Board Guide
Mounting Type:Surface Mount
Termination:Solder
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Contact Type:Cantilever
Color:Black
Flange Feature:-
Operating Temperature:-55°C ~ 125°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT EBC05MMDD

EBC05MMDD

CONN CARDEDGE MALE 10POS 0.100

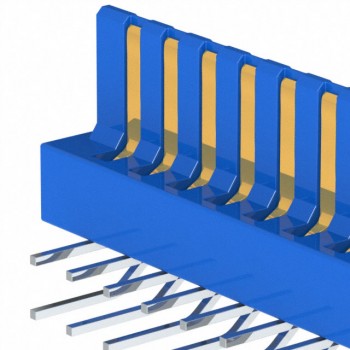

HOT EBM36MMBN

EBM36MMBN

CONN CARDEDGE MALE 72POS 0.156

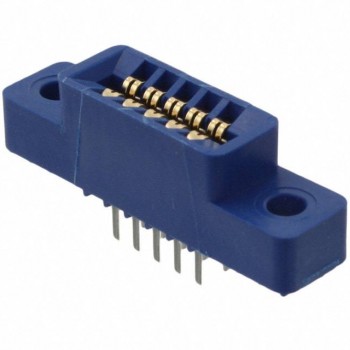

HOT ESC05DRTS
