HSEC8-113-01-L-DV-A-L2

HSEC8-113-01-L-DV-A-L2

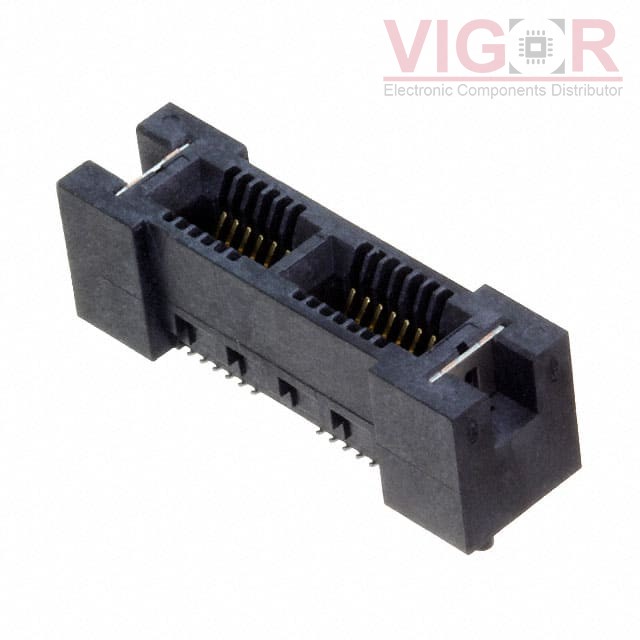

Image is for reference,
please contact us to get the real picture

Part No :

HSEC8-113-01-L-DV-A-L2

Manufacturer
Samtec, Inc.
Description
CONN EDGE DUAL FMALE 26POS 0.031
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
HSEC8-113-01-L-DV-A-L2 PDF
Availability
10 pieces
Unit Price
$4.17000

Current price of HSEC8-113-01-L-DV-A-L2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HSEC8-113-01-L-DV-A-L2 Specifications
Type Description
Series:Edge Rate™ HSEC8
Package:Tray
Part Status:Active
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:13
Number of Positions:26
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.031" (0.80mm)
Read Out:Dual
Features:Board Guide, Latches, Locking Ramp
Mounting Type:Surface Mount
Termination:Solder
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Contact Type:Cantilever
Color:Black
Flange Feature:-
Operating Temperature:-55°C ~ 125°C
