ME1005613401201

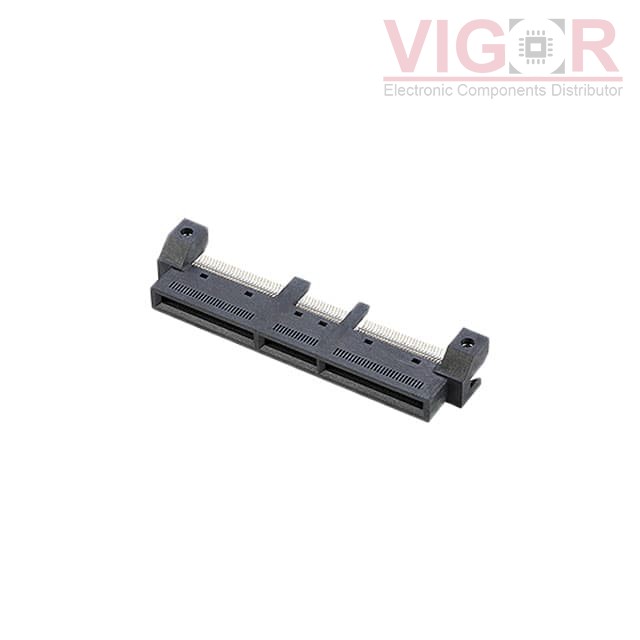

Image is for reference,
please contact us to get the real picture

Part No :: ME1005613401201

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN EDGE DUAL FMALE 56P 0.024

Catalog: Card Edge Connectors - Edgeboard Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 05 - Jul 09 2025

DataSheet: ME1005613401201 PDF

Availability: 224 pieces

Unit Price: ~~$3.12482~~

Current price of ME1005613401201 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ME1005613401201 Specifications

Type	Description
Series:	Mini Cool Edge 0.60mm
Package:	Tape & Reel (TR)
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	28
Number of Positions:	56
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.024" (0.60mm)
Read Out:	Dual
Features:	-
Mounting Type:	Board Edge, Straddle Mount
Termination:	Solder
Contact Material:	Copper Alloy
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Contact Type:	Cantilever
Color:	Black
Flange Feature:	Straddle Mount Opening, Unthreaded, 0.087" (2.20mm)
Operating Temperature:	-55°C ~ 105°C

Please confirm the specifications of the products when ordering.
