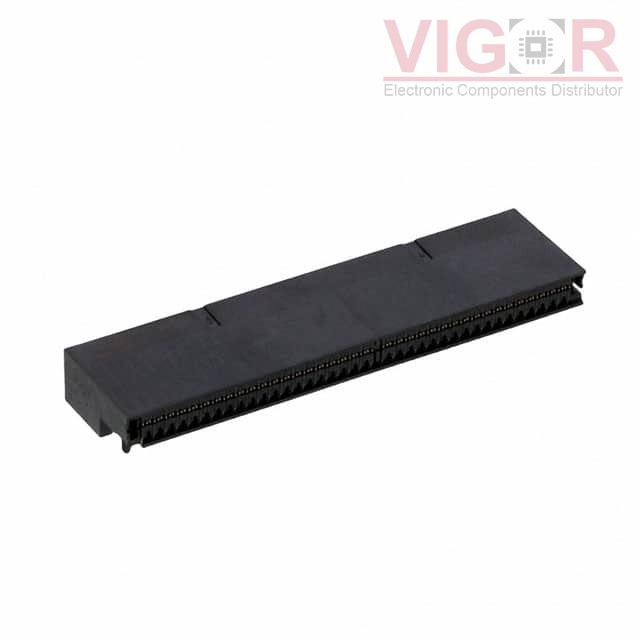

Image is for reference,
please contact us to get the real picture

Part No :

0762910226

Manufacturer
Woodhead - Molex
Description
CONN EDGE DUAL FMALE 226POS .030
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
0762910226 PDF
Availability
4 pieces
Unit Price
$66.11000

Current price of 0762910226 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0762910226 Specifications
Type Description
Series:EdgeLine 76291
Package:Tray
Part Status:Obsolete
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:-
Number of Positions:226
Card Thickness:0.057" ~ 0.069" (1.44mm ~ 1.76mm)
Number of Rows:2
Pitch:0.030" (0.76mm)
Read Out:Dual
Features:Board Guide
Mounting Type:Through Hole, Right Angle
Termination:Press-Fit
Contact Material:Copper Alloy
Contact Finish:Gold
Contact Finish Thickness:29.5µin (0.75µm)
Contact Type:-
Color:Black
Flange Feature:-
Operating Temperature:-40°C ~ 105°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MDT320A01001

MDT320A01001

CONN FEMALE 67POS 0.020 GOLD

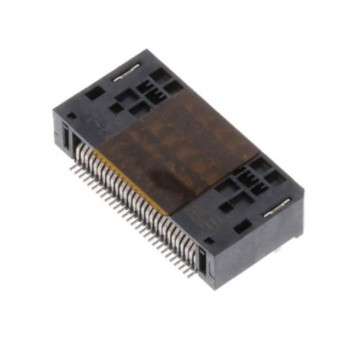

HOT 2327672-3

2327672-3

RECEPT ASSY RA 56 POS SLIVER 20

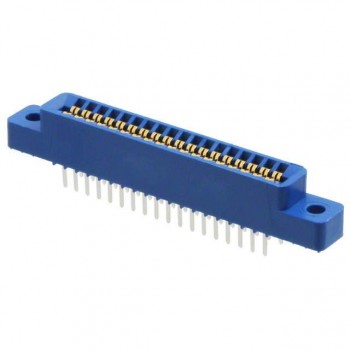

HOT EBC18DRXH
