MECF-08-01-L-DV

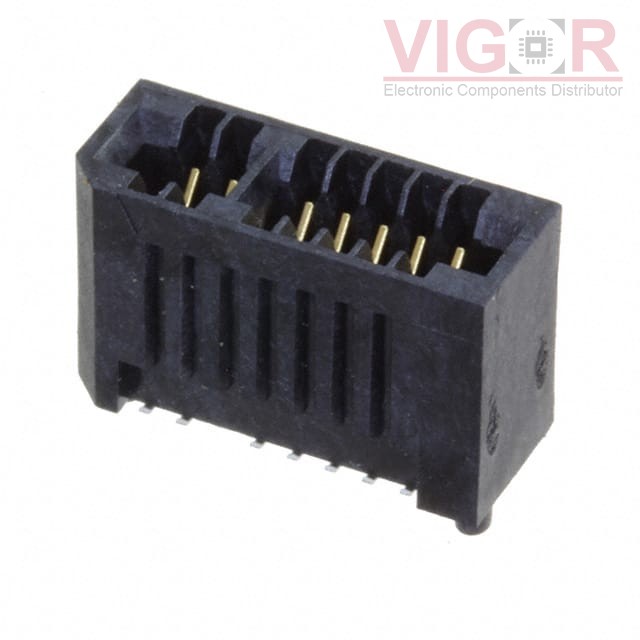

Image is for reference,
please contact us to get the real picture

Part No :: MECF-08-01-L-DV

Manufacturer: Samtec, Inc.

Description: CONN EDGE DUAL FMALE 16POS 0.05

Catalog: Card Edge Connectors - Edgeboard Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: MECF-08-01-L-DV PDF

Availability: 42 pieces

Unit Price: ~~$5.15000~~

Current price of MECF-08-01-L-DV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MECF-08-01-L-DV Specifications

Type	Description
Series:	MECF
Package:	Tube
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	-
Number of Positions:	16
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.050" (1.27mm)
Read Out:	Dual
Features:	Board Guide
Mounting Type:	Surface Mount
Termination:	Solder
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Contact Type:	Cantilever
Color:	Black
Flange Feature:	-
Operating Temperature:	-55°C ~ 125°C

Please confirm the specifications of the products when ordering.
