306-028-520-102

306-028-520-102

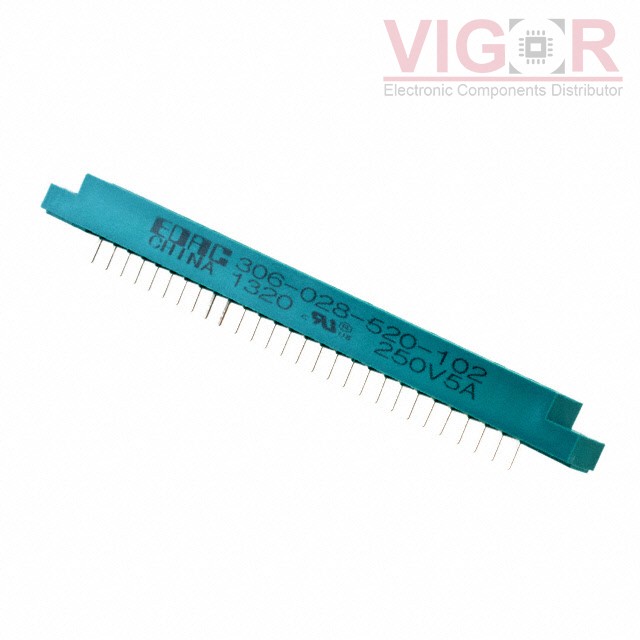

Image is for reference,
please contact us to get the real picture

Part No :

306-028-520-102

Manufacturer
EDAC Inc.
Description
CONN EDGE DUAL FMALE 56POS 0.156
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
306-028-520-102 PDF
Availability
0 pieces
Unit Price
$15.87240

Current price of 306-028-520-102 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

306-028-520-102 Specifications
Type Description
Series:306
Package:Bulk
Part Status:Active
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:28
Number of Positions:56
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.156" (3.96mm)
Read Out:Single
Features:-
Mounting Type:Through Hole
Termination:Solder
Contact Material:Copper, Nickel, Tin Alloy
Contact Finish:Gold
Contact Finish Thickness:-
Contact Type:-
Color:Green
Flange Feature:Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature:-65°C ~ 125°C
