ACM22DRKH

ACM22DRKH

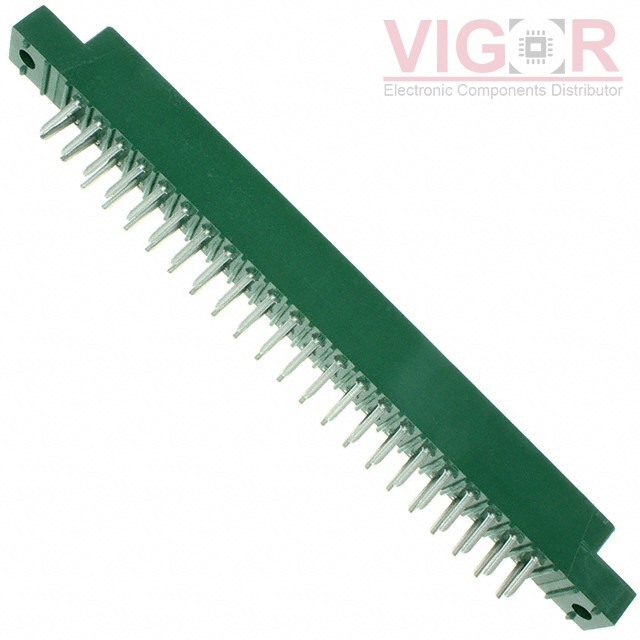

Image is for reference,
please contact us to get the real picture

Part No :

ACM22DRKH

Manufacturer
Sullins Connector Solutions
Description
CONN EDGE DUAL FMALE 44POS 0.156
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
ACM22DRKH PDF
Availability
0 pieces
Unit Price
$15.27200

Current price of ACM22DRKH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACM22DRKH Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:22
Number of Positions:44
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.156" (3.96mm)
Read Out:Dual
Features:-
Mounting Type:Through Hole
Termination:Solder
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Contact Type:Full Bellows
Color:Green
Flange Feature:Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature:-65°C ~ 150°C
