345-080-520-204

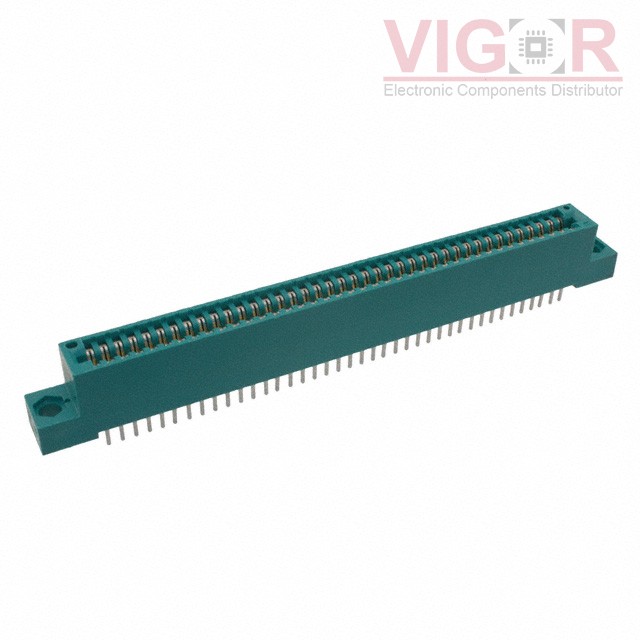

Image is for reference,
please contact us to get the real picture

Part No :

345-080-520-204

Manufacturer
EDAC Inc.
Description
CONN EDGE DUAL FMALE 80POS 0.100
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
345-080-520-204 PDF
Availability
0 pieces
Unit Price
$12.07040

Current price of 345-080-520-204 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:345
Package:Tray
Part Status:Active
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:40
Number of Positions:80
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.100" (2.54mm)
Read Out:Dual
Features:-
Mounting Type:Through Hole
Termination:Solder
Contact Material:Copper, Nickel, Tin Alloy
Contact Finish:Gold
Contact Finish Thickness:-
Contact Type:-
Color:Green
Flange Feature:Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature:-65°C ~ 105°C
