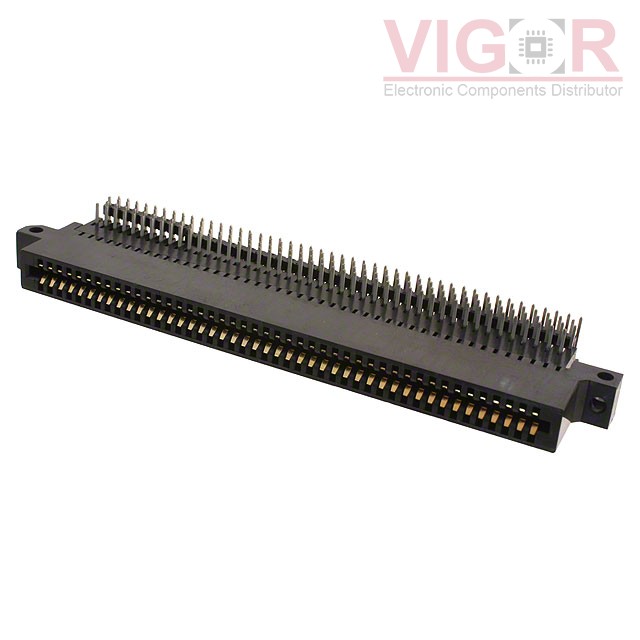

ACB90DKBS-S1075

ACB90DKBS-S1075

Image is for reference,
please contact us to get the real picture

Part No :

ACB90DKBS-S1075

Manufacturer
Sullins Connector Solutions
Description
CONN EDGE DUAL FMALE 180POS .100
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
ACB90DKBS-S1075 PDF
Availability
0 pieces
Unit Price
$87.75000

Current price of ACB90DKBS-S1075 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACB90DKBS-S1075 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Card Type:Non Specified - Dual Edge, Bi-Level
Gender:Female
Number of Positions/Bay/Row:90
Number of Positions:180
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.100" (2.54mm)
Read Out:Dual
Features:Bi-Level - High Density
Mounting Type:Through Hole, Right Angle
Termination:Solder
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Contact Type:Cantilever
Color:Black
Flange Feature:Side Mount Opening, Staggered Ears, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature:-65°C ~ 150°C
