305-024-500-204

305-024-500-204

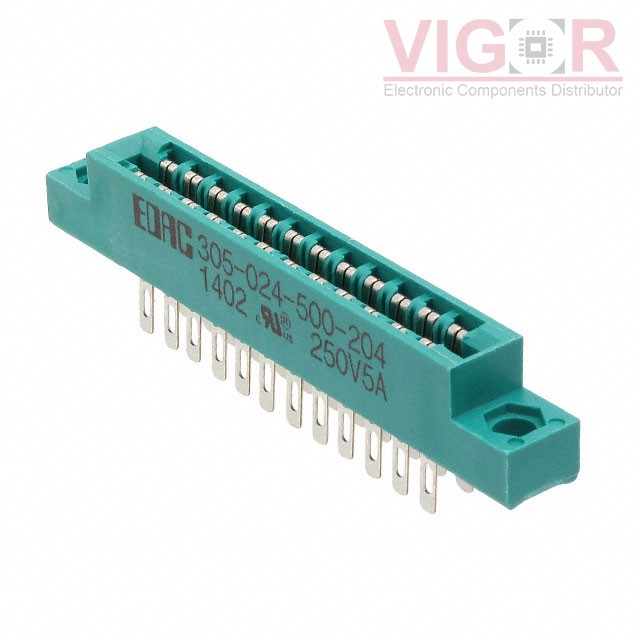

Image is for reference,
please contact us to get the real picture

Part No :

305-024-500-204

Manufacturer
EDAC Inc.
Description
CONN EDGE DUAL FMALE 24POS 0.156
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
305-024-500-204 PDF
Availability
0 pieces
Unit Price
$7.18000

Current price of 305-024-500-204 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

305-024-500-204 Specifications
Type Description
Series:305
Package:Bulk
Part Status:Active
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:12
Number of Positions:24
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.156" (3.96mm)
Read Out:Dual
Features:-
Mounting Type:Panel Mount
Termination:Solder Eyelet(s)
Contact Material:Copper, Nickel, Tin Alloy
Contact Finish:Gold
Contact Finish Thickness:-
Contact Type:-
Color:Green
Flange Feature:Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature:-40°C ~ 105°C
