1761786-1

1761786-1

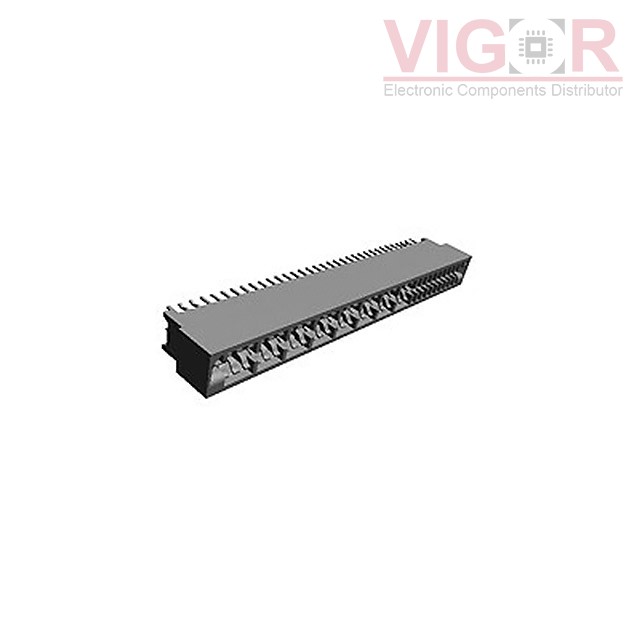

Image is for reference,
please contact us to get the real picture

Part No :

1761786-1

Manufacturer
TE Connectivity AMP Connectors
Description
CONN EDGE DUAL FMALE 20POS GOLD
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
1761786-1 PDF
Availability
155 pieces
Unit Price
$6.15000

Current price of 1761786-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1761786-1 Specifications
Type Description
Series:Standard Edge II
Package:Tray
Part Status:Active
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:1; 1; 1; 1; 6
Number of Positions:20 (12 + 8 Power)
Card Thickness:0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows:2
Pitch:-
Read Out:Dual
Features:-
Mounting Type:Through Hole
Termination:Press-Fit
Contact Material:Copper Alloy
Contact Finish:Gold
Contact Finish Thickness:15.0µin (0.38µm)
Contact Type:-
Color:Black
Flange Feature:-
Operating Temperature:-55°C ~ 85°C
